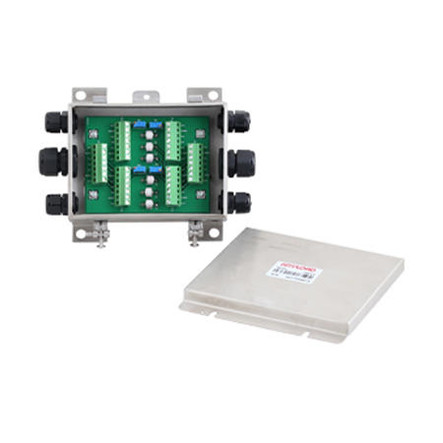

Anyload J04SS-E Signal Trim Junction Box with Lightning Protection

$250.00
Part #:
J04SS-E
Availability:
Typically ships in 2-3 days

Anyload J04SS-E Signal Trim Junction Box with Lightning Protection

The J04SS-E junction box accepts inputs from 2 to 4 load cells and sums the total signals into a single output. It is housed in a strong aluminum enclosure comes with the patented never-lost and integrated screw design.

Features

  • Lightning Protection
  • Expansion port
  • Number of cells: 2-4 single cells
  • Equipped with independent potentiometers
  • Captive stainless steel screws (attached to the cover)
  • IP Rating IP65
  • Stainless steel construction

Documentation

J04SS-E Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
J04SS-E
Length:
5.70"
Height:
1.70"
Width:
5.60"
Construction:
Stainless Steel
Number of Cells:
2-4 single cells
IP Rating:
IP65
Input Cable Fittings:
PG9: 4mm-8mm diameter cable
Output Cable Fittingss:
PG13: 6mm-12mm diameter cable
Trimming:
Signal Trim
Trimming Range:
350Ω - 3.6% of output, 700Ω - 6.3% of output, 1000Ω - 7.0% of output
