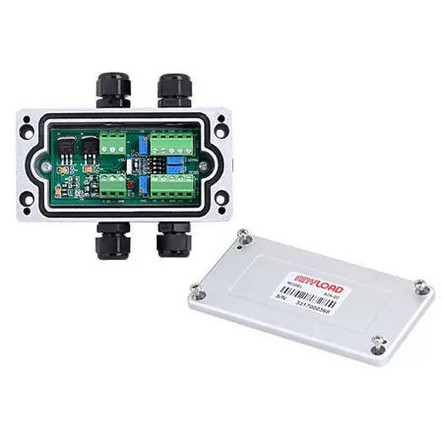

Anyload A2A-2D Load Cell Amplifier
ANYLOAD A2A series strain gage amplifiers provide load cell and transducer signal conditioning. The A2A strain gage amplifiers are DC powered amplifiers that can drive up to 2 x 350Ω load cells connected directly. It can also drive several load cells up to 4 x 350Ω load cells or 8 x 700Ω load cells through a junction box. Equipped with individual adjustable resistors, the A2A strain gage amplifiers are watertight with an aluminum casting enclosure and has a wide input signal from 0±36mV and output signal of 0±10V or 4-20mA. The A2A-D2 amplifier is now equipped with two options of excitation voltages (5VDC or 12VDC) to comply the desired requirements in various applications.
Features
- Can drive up to 1 or 2 load cells directly
- Can drive up to 8 x350 ohm load cells with the assistance of a junction box
- Watertight aluminum construction
- IP66 rated for washdown applications
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- A2A-D2
- Construction:
- Aluminum
- Tare Limit:
- Shall not exceed 30% of full load
- Number of Cells:
- 1 or 2 direct, Up to 8 via junction box
- Load Cell Excitation Voltage:
- 5 or 12 VDC
- Input Range:
- 0 +/- 36 mV
- Output Signal:
- 0-10 V, 4-20 mA
- IP Rating:
- IP66
- Operating Temperature:
- -10° - +50° C / 14° - 122° F
