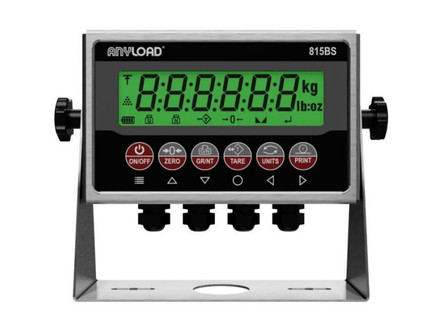

The Anyload 815BS Indicator offers advanced technology through a user friendly interface. It features intuitive controls, communication options, and a respectable IP66 washdown rating. The 815BS is commonly utilized in general weighing, piece counting, batching, and peak weighing applications. It can support up to eight 350 ohm load cells or sixteen 700 ohm load cells which allows it to be combined with some of the largest scales in the industry. The 815BS is also NTEP approved for use in legal for trade applications.
Features
- Weatherproof SS304 stainless steel NEMA4X / IP66 rated enclosure
- Easy wiring screw terminals
- Password-protected calibration menu
- Physical and electronic sealing via audit trail function
- Two set point output relays
- Advanced analog, digital and average filtering
- Two independent RS232 serial communication ports
- One independent RS485 serial communication port
- Breather vent to avoid condensation inside
- Power supplied through standard 100 - 240 VAC power cable
- NTEP Approved, Class III/IIIL CC: 22-116
- Measurement Canada approved
Applications
- General Weighing
- Piece Counting
- Batching
- Peak Weighing
- Truck Scales
Documentation
1 year manufacturer's limited warranty
- NTEP:
- Yes
- Class:
- III/IIIL
- IP Rating:
- IP66
- Weighing Units:
- kg, lb, oz and g
- Display Type:
- LCD display, 1” tall, 6 digits, 7 segments
- Load Cell Drive:
- Maximum of Up to 4x350Ω or 8x700Ω
- Excitation Voltage:
- 5V DC±5%
- Input Range:
- Up to 19mV/4mV/V
- Sample Rate:
- 80 samples/second
- Communication:
- 2 x RS-232C
- Operating Temperature Range:
- 15 °F to 120 °F / -10 °C to 50 °C
- Housing Dimensions:
- 9.1” x 7.4” x 3"
- Weight (approximate):
- 5.07 lb
- Brand:
- Anyload
- Part Number:
- 815BS
