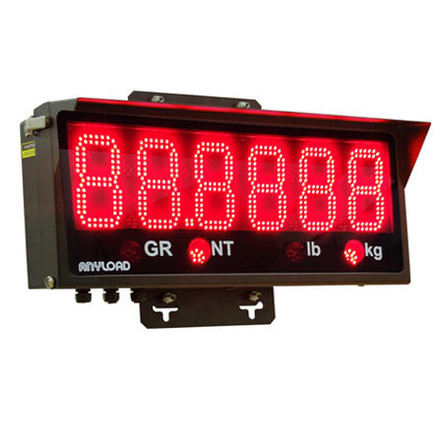

Anyload 808AH Remote Display
The Anyload 808AH remote display is rugged, durable, and easy to install. Equipped with Auto-Learn communication capabilities, the 808AH is compatible with a large variety of indicators and weighing instruments.
Features
- Six 5” (125mm) tall digits LED industrial remote display
- High intensity, wide viewing angle discrete LEDs
- Standard seven segments
- Automatic learn mode to set communication baud rates
- Automatic learn mode to detect incoming strings format
- Ambient light sensor for day and night brightness control
- Adjustable brightness settings for day and night
- Software configuration for custom string formats
- Menu driven setup function using a membrane keypad
- Switch inputs and a relay output module to control traffic light
- Customized software utility programs
- Customized addressable configuration
- Up to two decimal places with choice of dot or comma
- Reverse digits mode for visibility in mirrors
- Standard wall mount and pole mount kits
- Standard sun visor and rain shade
- Indication of GROSS (GR) or NET (NT) status by annunciators
- Indication of KG (kg) or LB (lb) units by annunciators
- Independent ESD protected RS232, RS422/RS485 and 20mA
- Echo out port for RS-232 and RS-422/RS-485
- Metal enclosure with hinged front cover for easy service
- Grey front safety glass
- Weather proof mild steel powder coated enclosure
- Internal folding electronic plate for easy wiring
- UL/CSA approved encapsulated multi sense voltage power supply
- Breather ventilation to avoid condensation inside enclosure
Documentation
1 year manufacturer's limited warranty
- IP Rating:
- IP65
- Construction:
- Powder Coated Mild Steel
- Display Type:
- 6-digit, 7-segment, 125mm LEDs
- Display Visibility:
- Max 75m(250') @ 1500mcd, 120° angle
- Status Indication:
- 4 annunciators for GR, NT, lb, and kg
- Communication:
- RS-232, RS-422/485
- Operating Temperature Range:
- -40 °F to 120 °F / -40 °C to 50 °C
- Power:
- 100-240 VAC, 1.2A, 50/60Jz, UL approved
- Housing Dimensions:
- 22.2" x 39.8" x 3.5"
- Weight:
- 19.84 lb
- Brand:
- Anyload
- Part Number:
- 808AH
