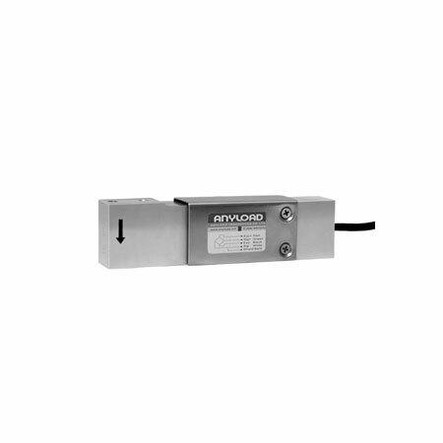

Anyload 651TAUN-100kg Single Point Load Cell
Features
- 100 kg capacity rating
- Aluminum construction
- Environmentally sealed IP66
- 2.0 mV/V ± 10% output
- Load cell cable length 3.1 m
- Safe overload up to 150% capacity
Interchange
- Mettler-Toledo MT1040
- Vishay Tedea-Huntleigh 1040
- Vishay Tedea-Huntleigh 1041
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 651TAUN-100kg
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 100 kg
- Safe Overload:
- 150% capacity
- Length:
- 5.91"
- Height:
- 1.57"
- Width:
- 1.34"
- Hole Thread:
- 1/4-20 UNC Depth13, 1/4-28 UNF Depth13
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.00 mV/V ± 10%
- Input Resistance:
- 415 (± 15) ohms
- Output Resistance:
- 350 (± 3) ohms
- Compensated Temperature Range:
- 14°F to 140°F/-10°C to 40°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP66
- Cable Length:
- 3.1 m
