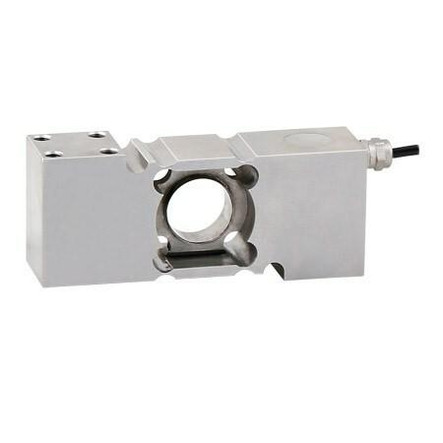

Anyload 651KS22-500kg Single Point Load Cell, NTEP
Features
- NTEP CC: 15-094
- 500 kg capacity rating
- Stainless steel construction
- Welded seal IP68/IP69K
- 2.0 mV/V ±10% output
- Load cell cable length 6 m
- Safe overload up to 150% capacity
Interchange
- Flintec PC7
- Mettler-Toledo SSH
- Vishay Tedea-Huntleigh 1510
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 651KS22-500kg
- Approvals:
- CE, RoHS, and Ex
- NTEP:
- Yes
- Class:
- III
- Capacity:
- 500 kg
- Safe Overload:
- 150% capacity
- Length:
- 5.91"
- Height:
- 2.56"
- Width:
- 1.50"
- Hole Thread:
- M8 Depth16
- Construction:
- Stainless Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Input Resistance:
- 385 (± 15) ohms
- Output Resistance:
- 350 (± 3) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Welded Seal
- IP Rating:
- IP68/IP69K
- Cable Length:
- 6 m
