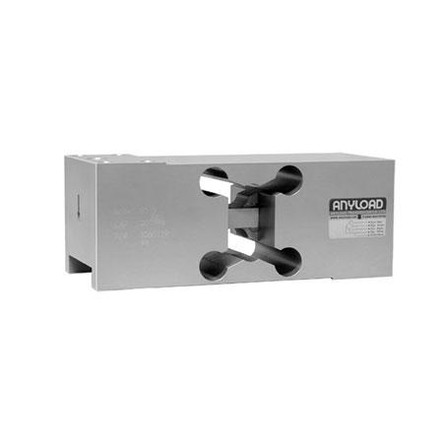

Anyload 651BAUN-200kg Single Point Load Cell
Features
- 200 kg capacity rating
- Aluminum construction
- Environmentally sealed IP67
- 2.0 mV/V ±10% output
- Load cell cable length 3.1 m
- Safe overload up to 150% capacity
Interchange
- ANYLOAD 108UAUN
- Coti Global CG-50
- FLINTEC PCB
- HBM PW12B
- HBM PW12
- Rice Lake RL1250
- Vishay Celtron LOC
- Vishay Revere Transducers 652
- Vishay Sensortronics 60060
- Vishay Tedea-Huntleigh 1250
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 651BAUN-200kg
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 200 kg
- Safe Overload:
- 150% capacity
- Length:
- 7.52"
- Height:
- 2.95"
- Width:
- 2.89"
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Input Resistance:
- 415 (± 15) ohms
- Output Resistance:
- 350 (± 3) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 3.1 m
