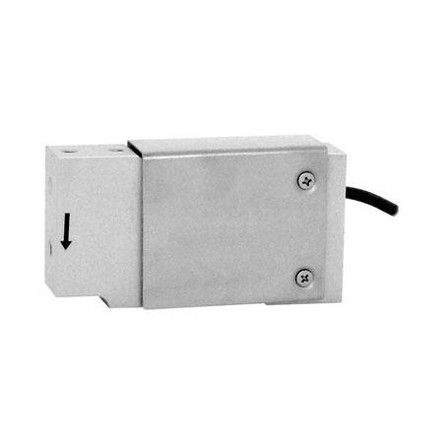

Anyload 651AA-50kg Single Point Load Cell
Features
- 50 kg capacity rating
- Aluminum construction
- Environmentally sealed IP66
- 2.0 mV/V ±10% output
- Load cell cable length 1 m
- Safe overload up to 150% capacity
Interchange
- Coti Global CG-1010
- HBM SP10
- Rice Lake RL1010
- Vishay Tedea-Huntleigh 1010
- Vishay Tedea-Huntleigh 1015
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 651AA-50kg
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 50 kg
- Safe Overload:
- 150% capacity
- Length:
- 4.65"
- Height:
- 2.58"
- Width:
- 1.18"
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Input Resistance:
- 415 (± 15) ohms
- Output Resistance:
- 350 (± 3) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 1 m
