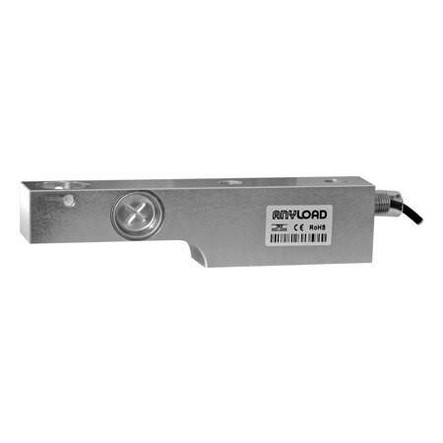

Anyload 563YSSB 20Klb Stainless Steel Single Ended Beam Load Cell, NTEP
Features
- NTEP CC: 16-090A1
- 20Klb capacity rating
- Stainless steel
- Welded seal IP68
- 2.0 mV/V ±0.25%
- Load cell cable length 6 m
- Safe overload up to 150% capacity
Interchange Options
- Cardinal SB10000S
- Cori Global CG-SB250
- Rice Lake RLSB250
Common Applications
- OEM
- Floor Scales
- Tank Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 563YSSB-20Klb
- NTEP:
- Yes
- Class:
- III
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 20,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 9.00"
- Height:
- 2.46"
- Width:
- 1.94"
- Hole Thread:
- 3/4-16 UNF-2B
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±0.25%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 350 (± 7) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Welded seal
- IP Rating:
- IP68
- Cable Length:
- 6 m
