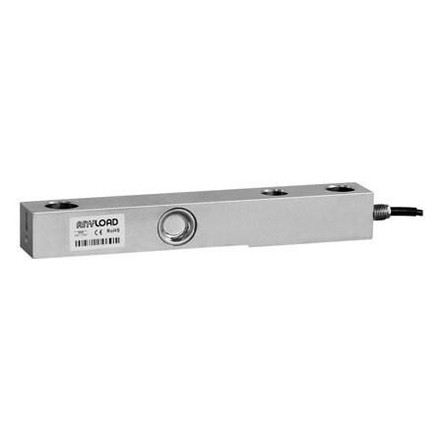

Anyload 563YSLF-YZ 1.5Klb Stainless Steel Single Ended Beam Load Cell
Features
- 1.5Klb capacity rating
- Stainless steel
- Environmentally sealed IP67
- 2.0 mV/V ±0.25%
- Load cell cable length 4.6 m
- Safe overload up to 150% capacity
Interchange Options
- Coti Global CG-BLF
- HBM BLF
- Fairbanks 3-53581-X
- Fairbanks 3-52921-1
Common Applications
- OEM
- Floor Scales
- Tank Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 563YSLF-1.5Klb-YZ
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 1,500 lb
- Safe Overload:
- 150% capacity
- Length:
- 9.00"
- Height:
- 1.13"
- Width:
- 1.19"
- Hole Thread:
- 5/8-18 UNF
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±0.25%
- Output Resistance:
- 1000 (± 5) ohms
- Input Resistance:
- 1000 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 4.6 m
