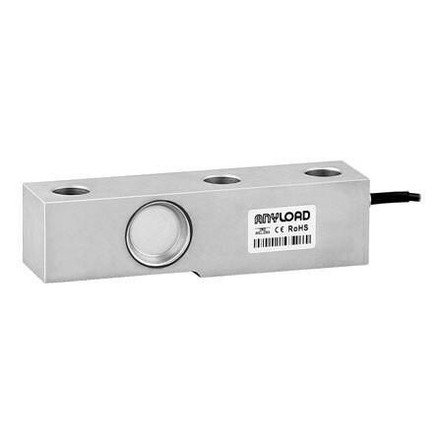

Anyload 563YHFK 250 kg Alloy Steel Single Ended Beam Load Cell, NTEP
Features
- NTEP CC: 16-090A1
- 250 kg capacity rating
- Alloy steel
- Environmentally sealed IP67
- 2.2 mV/V ± 0.25% output
- Load cell cable length 7 m
- Safe overload up to 150% capacity
Interchange Options
- Kelba KA250N
Common Applications
- OEM
- Floor Scales
- Tank Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 563YHFK-250kg
- NTEP:
- Yes
- Class:
- III
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 250 kg
- Safe Overload:
- 150% capacity
- Length:
- 2.13"
- Height:
- 0.98"
- Width:
- 0.83"
- Hole Thread:
- M10
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.2 mV/V ±0.25%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 385 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 7 m
