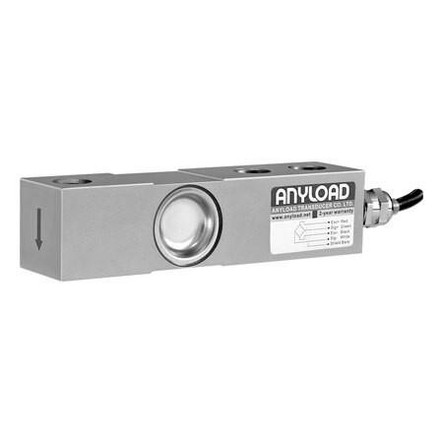

Anyload 563YH-2Klb 2000 lb Single Ended Beam Load Cell, NTEP
Features
- 2000 lb capacity rating
- NTEP approved 1: 5000 Class III, Single Cell; 1: 9500 Class III, Multiple Cell
- Alloy steel
- Environmentally sealed IP67
- 3 mV/V output
- Load cell cable length 6 m
- Safe overload up to 150% capacity
Interchange
- CAS BSA
- Rice Lake Weighing Systems RL30000
- Rice Lake Weighing System RL35023
- Coti Global CG-23
- Celtron SQB
- Revere Transducers 5123
- Tedea-Huntleigh 3411
- Sensortronics 65023A
Common Applications
- OEM
- Bench Scales
- Floor Scales
- Tank Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 563YH-2Klb
- Approvals:
- CE, RoHS, and Ex
- NTEP:
- Yes
- NTEP Class:
- 1: 5000 Class III, Single Cell; 1: 9500 Class III, Multiple Cell
- Capacity:
- 2000 lb
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Height:
- 1.25"
- Width:
- 1.25"
- Threading:
- 1/2-20 UNF-2B
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 350 (± 7) ohms
- Compensated Temperature Range:
- 14‚°F to 122‚°F/-10‚°C to 50‚°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 6 m
- Weigh Module Available:
- 563YHM2, 563YHM4, 563YHM5
