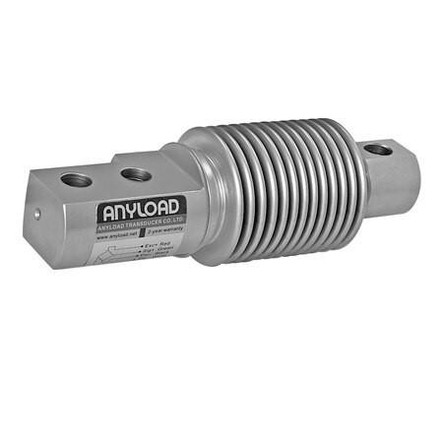

Anyload 563RS-10kg Stainless Steel Single Ended Beam Load Cell, NTEP, OIML
Features
- 10 kg / 22 lb capacity rating
- NTEP approved NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
- Stainless steel
- IP68 welded seal
- 2 mV/V output
- Load cell cable length 3 m
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RLHBB
- Cardinal CB6
- Coti Global CG-Z6
- Flintec SB8
- HBM Z6
- Mettler Toledo MTB
- Celtron HBB
- Vishay Revere Transducers SHB
- Tedea-Huntleigh 355
Common Applications
- OEM
- Bench Scales
- Floor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 563RS-10kg
- Part Number:
- 563RS-10kg
- Approvals:
- cFM, CE, OIML
- NTEP:
- Yes
- NTEP Class:
- NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
- Capacity:
- 10 kg
- Capacity:
- 22 lb
- Safe Overload:
- 150% capacity
- Length:
- 4.72"
- Height:
- 1.65"
- Hole Threading:
- Thru hole
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 5-10 VDC (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 400 (± 20) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Welded seal
- IP Rating:
- IP68
- Total Error:
- 0.02 % full scale
- Cable Length:
- 3 m
