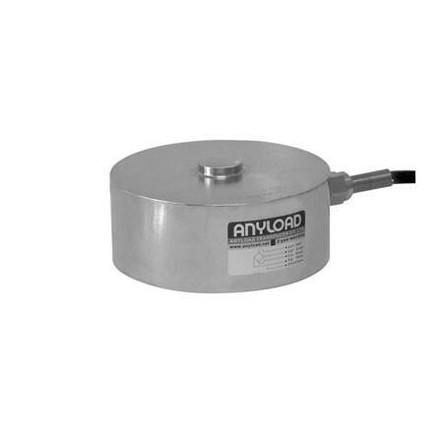

Anyload 266AH-500kg Compression Load Cell
Features
- 500 kg capacity rating
- Alloy steel construction
- Welded seal IP67
- 2.0 mV/V ± 1% output
- Load cell cable length 3 m
- Safe overload up to 150% capacity
Common Applications
- Railroad Scales
- Truck Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 266AH-500kg
- Capacity:
- 500 kg
- Approvals:
- CE, RoHS, and Ex
- Safe Overload:
- 150% capacity
- Length:
- 2.44"
- Height:
- 0.87"
- Width:
- 2.44"
- Construction:
- Alloy Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ± 1%
- Input Resistance:
- 400 (± 20) ohms
- Output Resistance:
- 350 (± 3) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Welded Seal
- IP Rating:
- IP67
- Cable Length:
- 3 m
