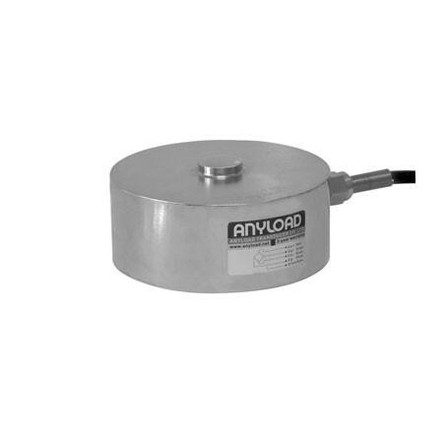

Anyload 266AA-25kg Compression Load Cell

$196.00
Part #:
266AA-25kg
Availability:
Typically ships in 2-3 days

Anyload 266AA-25kg Compression Load Cell

Features

  • 25 kg capacity rating
  • Aluminum construction
  • Welded seal IP67
  • 2.0 mV/V ± 1% output
  • Load cell cable length 3 m
  • Safe overload up to 150% capacity
Common Applications
  • OEM
  • Compression Testing
  • Small tank scales
Documentation

266AA Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
266AA-25kg
Capacity:
25 kg
Approvals:
CE, RoHS, and Ex
Safe Overload:
150% capacity
Length:
2.44"
Height:
0.87"
Width:
2.44"
Construction:
Aluminum
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.0 mV/V Ā± 1%
Input Resistance:
400 (Ā± 20) ohms
Output Resistance:
350 (Ā± 3) ohms
Compensated Temperature Range:
14Ā°F to 122Ā°F/-10Ā°C to 50Ā°C
Seal Type:
Welded Seal
IP Rating:
IP67
Cable Length:
3 m
