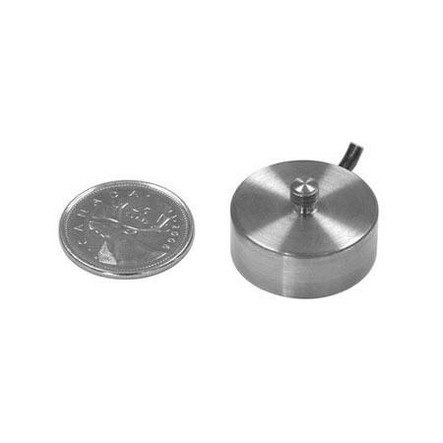

Anyload 247AS-200kg Compression Load Button
Features
- 200 kg capacity rating
- Stainless steel construction
- Environmentally sealed IP66
- 1.0 mV/V ± 20% output
- Load cell cable length 2 m
- Safe overload up to 150% capacity
Common Applications
- Bench Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 247AS-200kg
- Capacity:
- 200 kg
- Approvals:
- CE, RoHS, and Ex
- Safe Overload:
- 150% capacity
- Length:
- 0.79"
- Height:
- 0.16"
- Width:
- 0.79"
- Construction:
- Stainless Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 1.0 mV/V ± 20%
- Input Resistance:
- 375 (± 25) ohms
- Output Resistance:
- 350 (± 3) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP66
- Cable Length:
- 2 m
