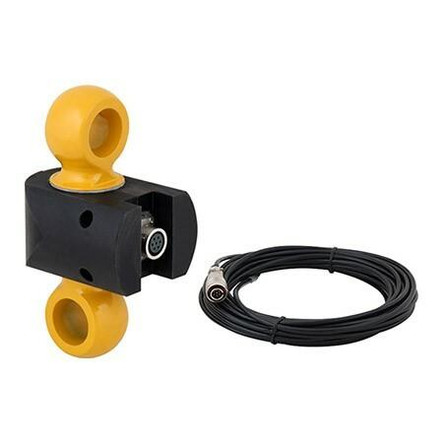

Anyload 110RH-T2-30t Tension Link Load Cell, NTEP
Features
- NTEP CC: 12-082A1
- 30 ton capacity rating
- Alloy Steel construction
- Environmentally Sealed IP67
- 2.0 mV/V ± 0.25% output
- Load cell cable length 10 m
- Safe overload up to 150% capacity
Suggested Shackle
- Crosby G-2140-30t
- TBX-30t
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 110RH-T2-30t
- Capacity:
- 60,000 lb
- NTEP:
- Yes
- Class:
- III
- Approvals:
- CE, RoHS, and Ex
- Safe Overload:
- 150% capacity
- Length:
- 3.62"
- Height:
- 9.76"
- Width:
- 4.92"
- Construction:
- Alloy Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Blue = +Sense, Yellow = -Sense, Shield Bare
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ± 0.25%
- Input Resistance:
- 1100 (± 50) ohms
- Output Resistance:
- 1000 (± 10) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Cable Length:
- 10 m
