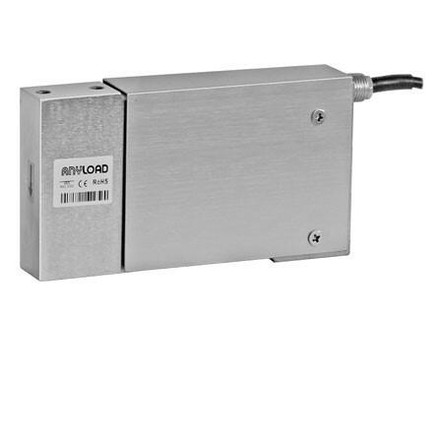

Anyload 108TSVS-500lb-YZ Single Point Load Cell

$438.00
Part #:
108TSVS-500lb-YZ
Availability:
Typically ships in 2-3 days

Anyload 108TSVS-500lb-YZ Single Point Load Cell

Features

  • 200 lb capacity rating
  • Stainless steel construction
  • Environmentally sealed IP66
  • 2.0 mV/V ­±10% output
  • Load cell cable length 3.1 m
  • Safe overload up to 150% capacity

Interchange

  • Coti Global CG-60048
  • Vishay Sensortonics 60048
Common Applications
  • OEM
  • Bench Scales
  • Conveyor Scales
Documentation

108TSVS Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
108TSVS-500lb-YZ
Approvals:
CE, RoHS, and Ex
Capacity:
500 lb
Safe Overload:
150% capacity
Length:
6.00"
Height:
3.09"
Width:
1.18"
Hole Thread:
1/4-28 UNF-2B Depth 0.75
Construction:
Stainless Steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.0 mV/V ±10%
Output Resistance:
350 (± 3) ohms
Input Resistance:
385 (± 15) ohms
Compensated Temperature Range:
14°F to 104°F/-10°C to 40°C
Seal Type:
Environmentally sealed
IP Rating:
IP66
Cable Length:
3.1 m
