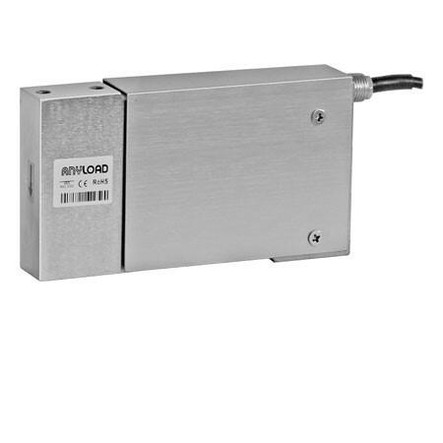

Anyload 108TSVS-100lb-YZ Single Point Load Cell
Features
- 100 lb capacity rating
- Stainless steel construction
- Environmentally sealed IP66
- 2.0 mV/V ±10% output
- Load cell cable length 3.1 m
- Safe overload up to 150% capacity
Interchange
- Coti Global CG-60048
- Vishay Sensortonics 60048
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 108TSVS-100lb-YZ
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 100 lb
- Safe Overload:
- 150% capacity
- Length:
- 6.00"
- Height:
- 3.09"
- Width:
- 1.18"
- Hole Thread:
- 1/4-28 UNF-2B Depth 0.75
- Construction:
- Stainless Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 385 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 3.1 m
