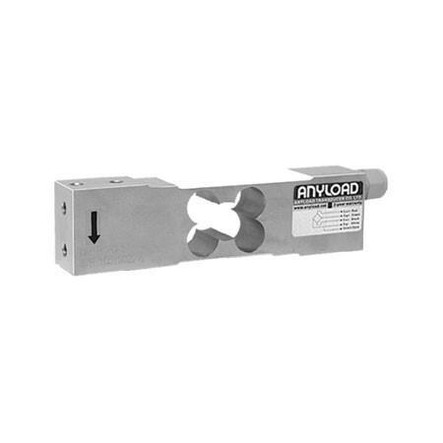

Anyload 108TS-75kg-YZ Single Point Load Cell
Features
- 75 kg capacity rating
- Stainless steel construction
- Environmentally sealed IP66
- 2.0 mV/V ±10% output
- Load cell cable length 2 m
- Safe overload up to 150% capacity
Interchange
- Cardinal TSSP
- FLINTEC PC1
- HBM PW15A
- Vishay Tedea-Huntleigh 1142
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 108TS-75kg-YZ
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 75 kg
- Safe Overload:
- 150% capacity
- Length:
- 5.91"
- Height:
- 1.57"
- Width:
- 1.0"
- Hole Thread:
- M6 Depth 16
- Construction:
- Stainless Steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 385 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 2.0 m
