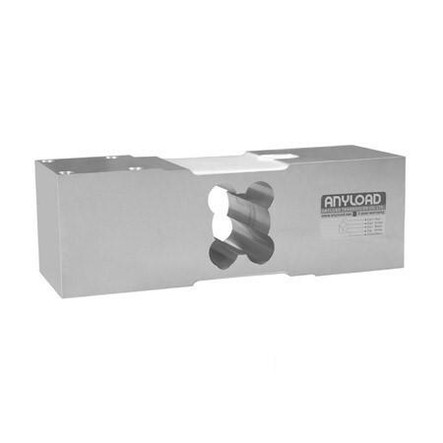

Anyload 108PA-300g Single Point Load Cell
Features
- 300 g capacity rating
- Aluminum construction
- Environmentally sealed IP66
- 1.0 mV/V ±20% output
- Load cell cable length 0.5 m
- Safe overload up to 150% capacity
Interchange
- HBM SPL
- Vishay Tedea-Huntleigh
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 108PA-300g
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 300 g
- Safe Overload:
- 150% capacity
- Length:
- 4.33"
- Height:
- 1.30"
- Width:
- 0.20
- Hole Thread:
- M3 Depth 12
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 1.0 mV/V ±20%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 415 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 0.5 m
