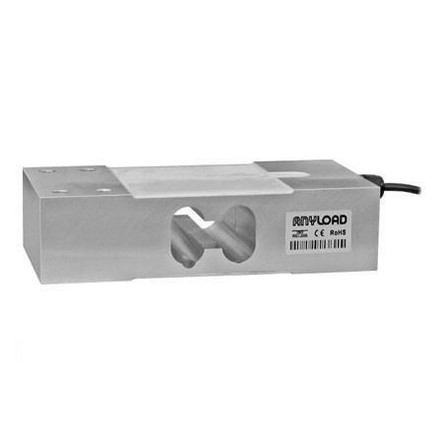

Features
- Aluminum construction
- Environmentally sealed IP66
- Higher accuracy of 1 in 5000
- Load cell cable length 2 m
- Safe overload up to 150% capacity
Documentation
1 year manufacturer's limited warranty
- Capacity:
- 400 kg
- Approvals:
- CE, RoHS, and Ex
- NTEP:
- Yes
- Class:
- III
- Safe Overload:
- 150% capacity
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2.0 mV/V ±10%
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 415 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 2 m
- Manufacturer:
- Anyload
- Model:
- 108JA-SE400kg-A2
