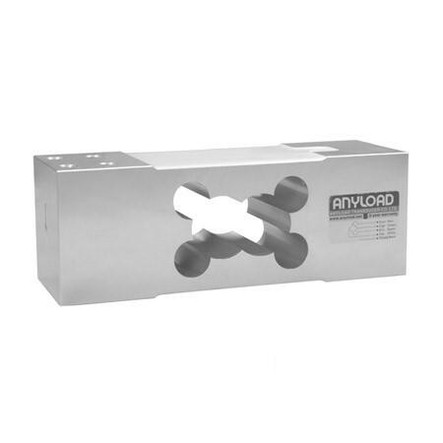

Anyload 108CA-20kg Single Point Load Cell, NTEP

$208.00
Part #:
108CA-20kg
Availability:
Typically ships in 2-3 days

Anyload 108CA-20kg Single Point Load Cell, NTEP

Features

  • NTEP CC: 12-036A1
  • 20 kg capacity rating
  • Stainless steel construction
  • Environmentally sealed IP66
  • 2.0 mV/V ­±10% output
  • Load cell cable length 2 m
  • Safe overload up to 150% capacity

Interchange

  • Coti Global CG-50-2
  • HBM PW24A
  • Vishay Tedea-Huntleigh 1263
Common Applications
  • OEM
  • Bench Scales
  • Conveyor Scales
Documentation

108CA Data Sheet

1 year manufacturer's limited warranty
Manufacturer:
Anyload
Model:
108CA-20kg
Approvals:
CE, RoHS, and Ex
NTEP:
Yes
Class:
III
Capacity:
20 kg
Safe Overload:
150% capacity
Length:
6.93"
Height:
2.44"
Width:
2.36"
Construction:
Stainless Steel
Cable Color Code:
Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
Rated Excitation:
10 V (maximum of 15 V)
Full Scale Output:
2.0 mV/V Ā±10%
Output Resistance:
350 (Ā± 3) ohms
Input Resistance:
415 (Ā± 15) ohms
Compensated Temperature Range:
14Ā°F to 104Ā°F/-10Ā°C to 40Ā°C
Seal Type:
Environmentally sealed
IP Rating:
IP66
Cable Length:
2 m
