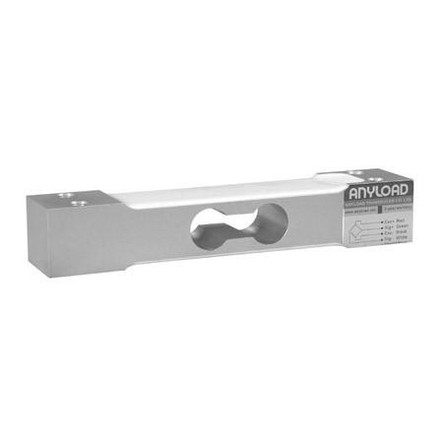

Anyload 108BA-3kg Aluminum Single Point Load Cell, NTEP
Features
- 3 kg capacity rating
- NTEP approved 1: 5000 Class III, Single Cell
- Aluminum construction
- Environmentally sealed IP66
- 2 mV/V output
- Load cell cable length 0.5 m
- Safe overload up to 150% capacity
Interchange
- Coti Global CG-22
- HBM PW6C
- HBM PW6K
- Mettler Toledo MT1022
- Rice Lake Weighing Systems RL1521A
- Celtron LPS ME 6-35kg
- Tedea-Huntliegh 1022
Common Applications
- OEM
- Bench Scales
- Conveyor Scales
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 108BA-3kg
- Approvals:
- CE, RoHS, and Ex
- NTEP:
- Yes
- NTEP Class:
- 1: 5000 Class III, Single Cell
- Capacity:
- 3 kg
- Safe Overload:
- 150% capacity
- Length:
- 5.12"
- Height:
- 0.87"
- Width:
- 1"
- Construction:
- Aluminum
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 2 mV/V
- Output Resistance:
- 350 (± 3) ohms
- Input Resistance:
- 415 (± 15) ohms
- Compensated Temperature Range:
- 14°F to 104°F/-10°C to 40°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP66
- Cable Length:
- 0.5 m
