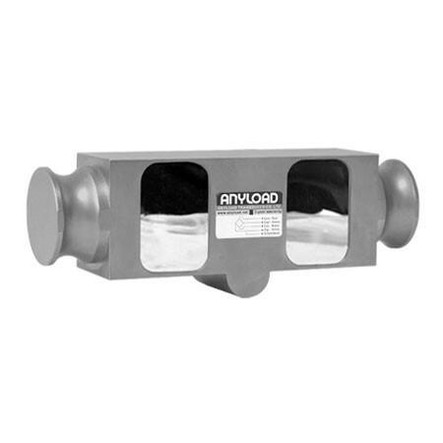

Anyload 102TH-40Klb Double Ended Beam Load Cell, NTEP
Features
- NTEP CC: 11-060A1
- 40K lb capacity rating
- Alloy steel
- Environmentally sealed IP67 rating
- 3.0 mV/V ± 0.25% output
- Load cell cable length 10 m
- Safe overload up to 150% capacity
Interchange Options
- Coti Global CG-BE40
- Rice Lake RL75040
- Vishay Celtron DLB
- Vishay Revere Transducers 9323
- Vishay Revere Transducers 9903
- Vishay Sensortronics 65040A
Common Applications
- OEM
- Industrial
- Technical
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 102TH-40Klb
- Approvals:
- CE, RoHS, and Ex
- NTEP:
- Yes
- Class:
- IIIL
- Capacity:
- 40,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 8.25"
- Height:
- 2.97"
- Width:
- 1.94"
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V ± 0.25%
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 700 (± 10) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Environmentally Sealed
- IP Rating:
- IP67
- Cable Length:
- 10 m
