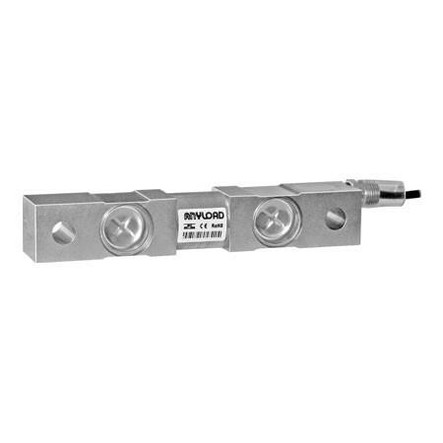

Anyload 102ES-15Klb Double Ended Beam Load Cell
Features
- 15K lb capacity rating
- Stainless steel
- Welded seal IP68 rating
- 3.0 mV/V ± 0.25% output
- Load cell cable length 10 m
- Safe overload up to 150% capacity
Interchange Options
- Coti Global CG-16-SSW
- Rice Lake RL75016SS
- Rice Lake RL75016WHE
- Mettler Toledo SLD525
- Vishay Celtron DSR-SS
- Vishay Revere Transducers 9203
- Vishay Sensortronics 65016W
- Vishay Sensortronics 65016WH
Common Applications
- OEM
- Industrial
- Technical
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 102ES-15Klb
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 15,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 7.50"
- Height:
- 1.94"
- Width:
- 1.44"
- Hole Threading:
- 1/4-18 NPT
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 3.0 mV/V ± 0.25%
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 700 (± 10) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Welded Seal
- IP Rating:
- IP68
- Cable Length:
- 10 m
