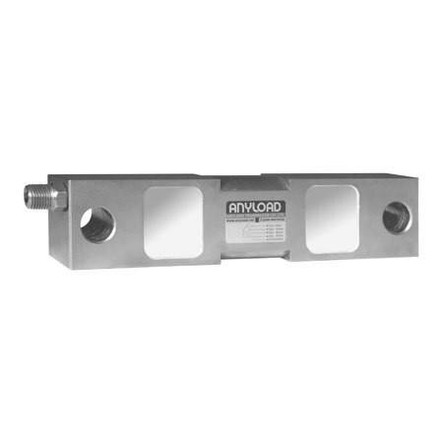

Anyload 102EH-125K lb Double Ended Beam Load Cell
Features
- 125,000 lb capacity rating
- Alloy steel
- Environmentally sealed IP67
- 3 mV/V output
- Load cell cable length 18 m
- Safe overload up to 150% capacity
Interchange
- Coti Global CG-16
- Rice Lake RL75016
- Mettler Toledo SLD425
- Vishay Celtron DSR
- Vishay Revere 5203
- Vishay Sensortronics 65016
Common Applications
- OEM
- Industrial
- Technical
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 102EH-125K lb
- Approvals:
- CE, RoHS, and Ex
- Capacity:
- 125,000 lb
- Safe Overload:
- 150% capacity
- Length:
- 18.50"
- Height:
- 3.94"
- Width:
- 2.94"
- Threading:
- 1/2-14 NPT
- Construction:
- Alloy steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Rated Excitation:
- 10 V (maximum of 15 V)
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 700 (± 5) ohms
- Input Resistance:
- 700 (± 10) ohms
- Compensated Temperature Range:
- 14°F to 122°F/-10°C to 50°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 18 m
- Weigh Module Available:
- 102EHM2
