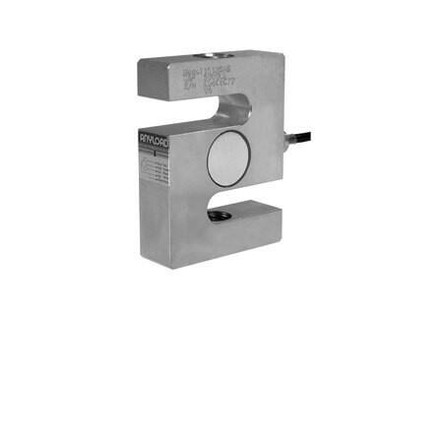

Anyload 101NSGS 3K lb S-Beam Load Cell, NTEP
Features
- 3K lb capacity rating
- NTEP CC: 12-049A2
- Stainless steel construction
- Environmentally sealed IP67 rating
- 3 mV/V ± 1% output
- Load cell cable length 6 m
- Safe overload up to 150% capacity
Interchange
- Coti Global CGSB-SS
- Rice Lake RL20000 SS
- Rice Lake RL20000 ST
- Vishay Celtron STC-SS
- Vishay Revere Transducers 9363
- Vishay Sensortronics 60050
Common Applications
- OEM
- Crane scales
- Hoppers
- Tension testing
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 101NSGS-3Klb
- Capacity:
- 3,000 lb
- NTEP:
- Yes
- NTEP Class:
- 1:5500 Class III
- Safe Overload:
- 150% capacity
- Breaking Overload:
- 300% capacity
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Height:
- 3.00"
- Width:
- 1.11"
- Length:
- 2.00"
- Hole Threading:
- 1/2-20 UNF-2B
- Construction:
- Stainless steel
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Full Scale Output:
- 3.0 mV/V ± 1%
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 350 (+/- 7) ohms
- Compensated Temperature Range:
- 14° F to 122° F / -10°C to 50°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 6 m
