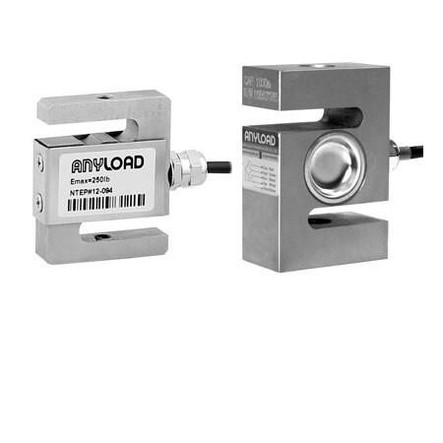

Anyload 101NH-1.5Klb 1500 lb S-Beam Load Cell, NTEP
Features
- 1500 lb capacity rating
- NTEP Approved
- NTEP 1:5500 Class III
- Alloy steel construction with nickle plating
- Environmentally sealed IP67 rating
- 3 mV/V output
- Load cell cable length 6 m
- Safe overload up to 150% capacity
Interchange
- Rice Lake Weighing Systems RL20000
- Rice Lake Weighing Systems RL20001
- Coti Global CGSB
- Sensortronics 60001
- Celtron STC
- Revere 363
Common Applications
- OEM
- Crane scales
- Hoppers
- Tension testing
Documentation
1 year manufacturer's limited warranty
- Manufacturer:
- Anyload
- Model:
- 101NH-1.5Klb
- Capacity:
- 1,500 lb
- NTEP:
- Yes
- NTEP Class:
- 1:5500 Class III
- Safe Overload:
- 150% capacity
- Breaking Overload:
- 300% capacity
- Rated Excitation:
- 10 VDC (maximum of 15 V)
- Height:
- 3"
- Width:
- 1.11"
- Length:
- 2"
- Hole Threading:
- 1/2-20 UNF-2B
- Construction:
- Alloy steel
- Finish:
- Nickle plating
- Cable Color Code:
- Red = + Excitation, Black = - Excitation, Green = + Signal, White = - Signal, Bare = Shield
- Full Scale Output:
- 3 mV/V
- Output Resistance:
- 350 (+/- 3) ohms
- Input Resistance:
- 350 (+/- 7) ohms
- Compensated Temperature Range:
- 14‚° F to 122‚° F / -10‚°C to 50‚°C
- Seal Type:
- Environmentally sealed
- IP Rating:
- IP67
- Cable Length:
- 6 m
