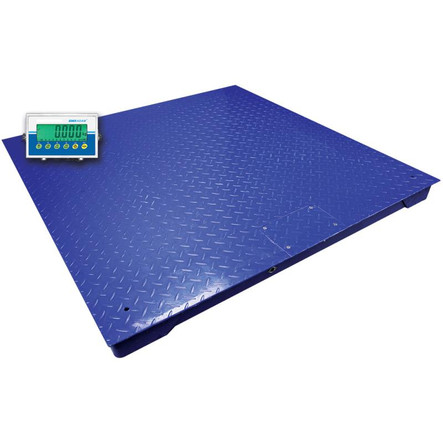

Adam Equipment PT platform scales combined with the stainless steel AE403 indicator provide an effective floor scale solution for use in industrial and agricultural applications. PT series platform scales offer a durable and high quality construction. The PT features a large, steel base with a diamond plate surface, adjustable leveling feet and cable. The AE403 indicator features an IP66 rated stainless steel housing that is ideal for use in dirty and wet environments. A large backlit LCD display is easy to read in any lighting condition with 1.6 inch high digits. Connect the AE403 to a PC, printer or other devise using the RS232 interface. Adam Equipment's AE403 indicator offers plenty of user friendly features including display hold, user programmable backlight and auto-power off, user selectable scale division, programmable checkweighing limits, audible checkweighing alarm and a variety of other features.
Platform Features
- Built strong to stand up to heavy industrial use
- Raised diamond plate surface helps prevent slips
- Adjustable feet ensure proper platform leveling
- PT series platforms can be used with any Adam Equipment indicators
- Includes 10 feet of cable
- Top access junction box
Indicator Features
- IP67 rated stainless steel housing
- Highly visible digits measure 1.6" high
- Hold function freezes displayed weight
- Includes AC adapter and rechargeable battery
- RS-232 interface for connection to PCs and devices
- Support multiple weighing units and weighing applications
- GLP compliant printing options with date and time tracking
- Simple and quick operation using color coded keypad
- Programmable backlight and auto power off features to save energy
- Capacity tracker built into display to easily monitor overload
- Zero-tracking feature ensures display returns to zero reading
- Audible checkweighing alarm
- Selectable digital filtering
Documentation
Adam Equipment PT Series Data Sheet AE 403a Indicator Datasheet AE 403a Indicator Manual
- Capacity:
- 10,000 lb / 4500 kg
- Readability:
- 2 lb / 1 kg
- Stabilization Time:
- 2 seconds or less
- Calibration:
- External calibration
- Weighing Units:
- g, kg, lb, lb:oz, oz, N, custom unit
- Load Cells:
- 4 load cells
- Excitation Voltage:
- 5 - 10 VAC/DC
- Platform Construction:
- Mile steel base, Raised diamond tread top
- Indicator Construction:
- Stainless steel housing, Raised tactile keypad
- Indicator IP Rating:
- IP67
- Display:
- Backlit LCD display, 1.6" digit height
- Power:
- 12 VDC 800mA adapter (included), Internal rechargeable battery (included)
- Battery Life:
- 90 hours on full charge
- Cable Length:
- 10 ft / 3 M
- Platform Dimensions (W x D x H):
- 59.1"x 59.1" x 4.3" / 1500 x 1500 x 110 mm
- Indicator Dimensions (W x D x H):
- 9.4" x 5.7" x 3.7" / 240 x 145 x 95 mm
- Weight:
- 250 lb / 113 kg
- Operating Temperature:
- 14° to 104°F / -10° to 40°C
- Approvals:
- NA
- Brand:
- Adam Equipment
- Model:
- PT 315-10 AE403
