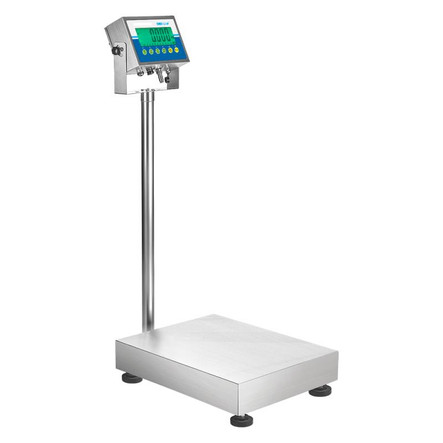

The Adam Equipment Gladiator Washdown series is designed for extreme conditions. The Gladiator's functions include parts counting, dynamic weighing, percentage weighing, weighing, and checkweighing. These scales streamline the checkweighing process with LED indication lights that quickly display above, below, or acceptable weight. It also comes with an AC adapter and internal rechargeable battery with a 90 hour run time. The base, indicator, and pan are constructed of stainless steel to ensure there is no product contamination. The Gladiator is best used in washdown and cleanroom settings in industries such as chemical manufacturing, food processing, and pharmaceutical processing.
Features
- IP67 rated system for washdown protection
- Features the AE 403a Washdown Digital Indicator
- Comes with AC adapter and internal rechargeable battery with 90 hour run time
- Durable 304 stainless steel construction
- Stainless steel pan and indicator
- Color coded keys for easy cognitive recognition
- Overload protection
- Sealed keypad and splash-proof housing for easy cleaning and to protect against spills
- Comes with a pillar mounted display
- Auto power off feature
- Preset samples sizes for setting up parts counting
- Programmable digital filtering to help keep the displayed weight stable
- Zero tracking to ensure scale returns to zero
- Bright LCD backlight easily view-able in any light
- Backlight can be set to always on, always off, or on only when weighing
- RS-232 connection for printers and PCs
- Larger base dimension of 15.7"x 19.7"
Applications
- Weighing
- Parts Counting
- Percentage Weighing
- Checkweighing
- Dynamic Weighing
Documentation
- Capacity:
- 165 lb / 75 kg
- Readability:
- 0.01 lb / 5 g
- Repeatability:
- 0.02 lb / 10 g
- Linearity:
- 0.02 lb / 10 g
- Construction:
- Stainless steel indicator and base
- Display Type:
- LCD
- Digit Height:
- 1.6" / 40 mm
- IP Rating:
- IP67
- Calibration:
- External
- Overall Dimensions (W x D x H):
- 15.8" x 23.8" x 40.6" / 400 x 605 x 1032mm
- Pan Size:
- 15.7"x 19.7"
- Weight:
- 28.80 lbs / 13.06 kg
- Operating Temperature:
- 14° to 104°F / -10° to 40°C
- Approvals:
- NA
- Interface:
- Optional RS-232
- Power Supply:
- 12VDC 800mA adapter / Internal rechargeable battery
- Battery Life:
- 90 hours
- Electrical Safety:
- CE, cUL
- Weighing Units:
- g, kg, lb, lb:oz, oz, N
- Brand:
- Adam Equipment
- Model:
- GGF 165a
