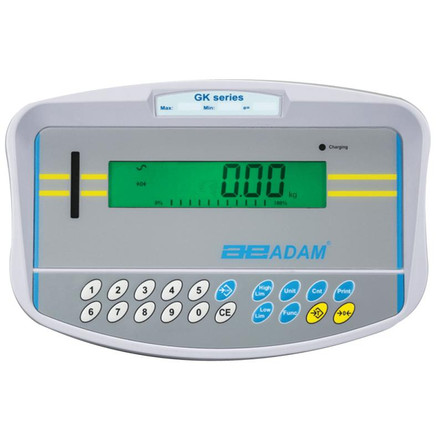

The Adam Equipment GKaM can be connected to most bases and offers flexibility with multiple weighing applications. A RS-232 communication interface allows connection to a printer or PC and is setup to print date and time for data tracking. The display of the GKaM shows a capacity tracker to prevent overload damage. The indicator housing, display, and keypad are all sealed to protect from damage and to make the GKaM easy to clean. A 12VDC power adapter, internal rechargeable battery and wall mount bracket are all included. The GKaM is legal for trade in the United States and Canada.
Features
- Sealed housing, display, and keypad for protection and easy cleaning
- Full numeric keypad
- Durable ABS plastic construct
- LCD display with 0.8 inch digits
- Visible capacity tracker to prevent overloads
- Audible alarm for checkweighing
- Freely selected parts counting samples
- Programmable backlight settings for on, off and during weighing
- Preset tare function for repetitive weighing processes
- Zero tracking feature to ensure scale returns to zero
- Selectable digital filtering for stability
- RS-232 interface for connection to PC or printer
- Comes with 12VDC adapter, internal rechargeable battery. and wall mount bracket
- Programmable power off feature to conserve energy
Applications
- Weighing
- Parts Counting
- Percentage Weighing
- Checkweighing
- Dynamic Weighing
- Check Counting
Documentation
Adam Equipment GKaM Data Sheet
12 Months
- Capacity:
- Programmable
- Readablity:
- Programmable
- Resolution:
- 1 : 80,000
- Weighing Units:
- kg, lb, lb:oz, oz, N
- Display:
- LCD
- IP Rating:
- IP55
- Communication:
- RS-232
- Load Cells:
- Up to 4 load cells with 350 ohm
- Sensitivity:
- 0.15 uv/d
- Zero Range:
- 0-10 mV
- Signal Range:
- 0-40 mV
- Operating Temperature Range:
- 14 °F to 104 °F / -10 °C to 40 °C
- Power:
- 12VDC 800mA adapter, Internal rechargeable battery
- Overall Dimensions:
- 10.2" x 6.7" x 4.5" / 260 x 170 x 115 mm
- Weight:
- 4.4 lb
- Approvals:
- NTEP : 12-068, Measurements Canada
- Brand:
- Adam Equipment
- Model:
- GKaM
