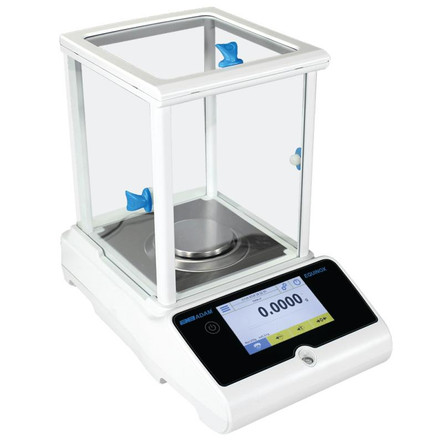

Adam Equipment Equinox balances provide an exceptional level of precision for analytical laboratories, universities, industrial labs and quality control facilities. Equinox features a 5 inch color touch screen display with an icon-driven menu. Navigation is familiar for most users as the menu operates much like a smartphone. The Equinox analytical balance series features RS-232 and USB connection along with USB host for memory card use. Equinox also offers internal memory for storing results and product IDs.
Equinox is versatile with multiple weighing modes, multilingual operation, and multiple weighing units. The ABS plastic housing and glass draft shield protect against static, reducing effects on weighing results and improving reliability. User settings allow environmental filtering and security controls to prevent unauthorized access. Adam Equipment Equinox semi microbalances offer reliable and accurate performance, easy operation and intuitive features designed for labs that demand nothing but exceptional results.
Features
- Large 5" color touchscreen display featuring icon-driven menu
- Level indicator and adjustable feet ensure proper balance setup
- Type 304 stainless steel weighing pan
- RS-232 and USB interfaces for connection to computers and printers
- USB host for memory card
- Anti-static housing and draft shield design
- Built-in memory for storing settings and products
- Integral security slot helps prevent theft
- Selectable digital filtering minimizes effects of vibration
- Security controls prevent unauthorized access
- GLP compliant printing format includes date and time
- Preset tare function makes repetitive weighing quicker
- Multilingual display
- Checkweighing features audible alarm
Applications
- Weighing
- Parts counting
- Percentage weighing
- Checkweighing
- Dynamic / animal weighing
- Accumulation
- Density determination
- Display hold
- Formulation
- Statistics
- Textile
Documentation
- Capacity:
- 220 g
- Readability:
- 0.1 mg
- Repeatability:
- 0.2 mg
- Linearity:
- 0.3 mg
- Calibration:
- External calibration
- Weighing Units:
- g, mg, ct, GN, lb, oz, dwt, mm, ozt, tl.H, tl.S, tl.T, T, custom unit
- Stabilization Time:
- 4 seconds or less
- Display:
- 5" Color touch screen
- Pan Size:
- 3.1" / 80 mm
- Communication:
- RS-232, USB
- Construction:
- ABS housing; Glass draft shield
- Operating Temperature:
- 50° to 86°F / 10° to 30°C
- Power:
- 24VDC 500mA adapter
- Overall Dimensions (W x D x H):
- 8.8" x 14.7" x 13.3 " / 224 x 374 x 338 mm
- Brand:
- Adam Equipment
- Model:
- EAB 224e
