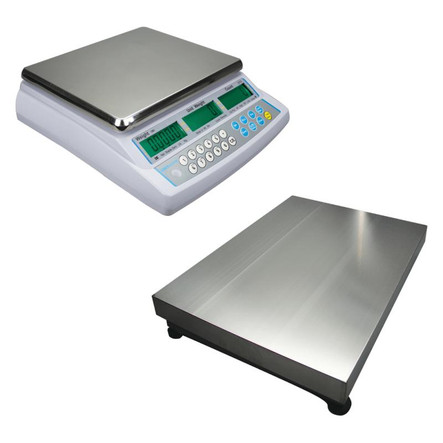

Adam Equipment CBC 8a-130a Counting Scale w/ Remote Base
The Adam Equipment CBD 8a-130a counting scale with remote base is ideal for industrial and manufacturing parts counting applications. This is the standard CBD 8a with a 130 lb capacity remote base.You get the accuracy and readability of the CBC 8a and the ability to use your larger base to weigh out heavier packages and larger part counts. You are able to setup your counting sample on the CBD primary base or remote base. The CBD features a large stainless steel pan, three large LCD displays showing weight, unit weight and count, and is simple to use. The CBD is great for packaging, inventory counting and small and large parts manufacturing. The durable ABS housing is designed for rigorous use and to hold up in industrial environments. Adam Equipment CBD series counting scales offer an affordable and effective solution for parts counting processes.
Features
- Durable ABS housing and stainless steel weighing pan
- 130 lb x 0.005 lb remote base
- Color-coded keys offer quick recognition for common functions
- Integrated level indicator and adjustable feet ensure proper setup
- RS-232 interface connects to computers and printers
- Programmable backlight settings for on, off and during weighing
- 3 large highly-visible LCD displays for weight, unit weight and count
- Auto power-off feature saves energy
- Preset tare function for repetitive weighing
- Capable of connecting to a second scale or base with up to 4 load cells
- Can store up to 100 PLU (product look up) that can be recalled for use and reference
- External calibration
- Programmable for a set number of parts
- Can be setup with a password to prevent unauthorized use
- Programmable alarm sounds when preset total is reached
- Includes rechargeable battery and AC adapter
Weighing Applications
- Weighing
- Parts Counting
- Batching
- Count Accumulation
- Check Counting
- Second Scale weighing
- Second Scale Counting
- Capacity:
- 8 lb
- Readability:
- 0.0002 lb
- Repeatability:
- 0.0002 lb
- Linearity:
- 0.0004 lb
- Remote Base Capacity:
- 130 lb
- Remote Base Readability:
- 0.005 lb
- Calibration:
- External
- Weighing Units:
- lb, kg
- Stabilization Time:
- 2 s
- Pan Size:
- 8.9" x 10.8" / 225 x 275 mm
- Remote Base Pan Size:
- 15.7" x 19.7" / 400 x 500 mm
- Power Supply:
- 12 VDC 800mA adapter / Internal rechargeable battery
- Battery Life:
- 90 hours
- Interface:
- RS-232
- Operating Temperature:
- 0° to 40° C / 32° to 104° F
- Overall Dimensions:
- 12.4" x 14" x 4.3" / 315 x 355 x 110 mm
- Electrical Safety:
- CE, cUL
- Internal Resolution:
- 1:600,000
- Display Type:
- LCD
- Brand:
- Adam Equipment
- Model:
- CBD 8a-130a
