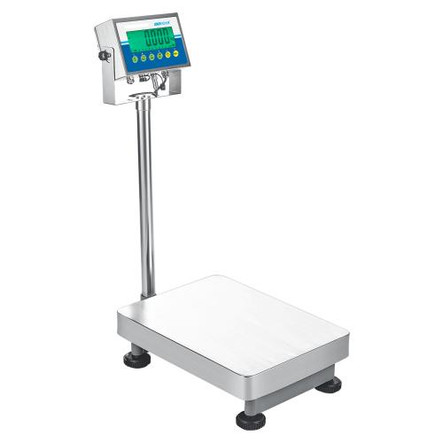

The versatile Adam Equipment AGF Bench Scale series is ideal for a wide range of manufacturing, processing, and logistics applications. AGF bench scales accommodate multiple weighing modes including parts counting, checkweighing, weighing, dynamic weighing and percentage weighing. They feature a stainless steel indicator with large LCD display, a die-cast aluminum base, and a large stainless steel pan. Each scale includes an AC adapter and internal rechargeable battery with a 90 hour operating charge.
Features
- Stainless steel pan and indicator
- Color coded keys for easy cognitive recognition
- Auto power off feature
- Checkweighing with audible alarm
- LED lights for checkweighing that show above, below, or acceptable weight
- Preset samples sizes for setting up parts counting
- Capacity tracker visible on display
- Programmable digital filtering to help keep the displayed weight stable
- Zero tracking to ensure scale returns to zero
- Bright LCD backlight easily view-able in any light
- Backlight can be set to always on, always off, or on only when weighing
- RS-232 connection for printers and PCs
Applications
- Weighing
- Parts counting
- Percentage weighing
- Checkweighing
- Dynamic weighing
- Hold and peak hold weighing
- Net and gross weighing
Documentation
5 Years
- Capacity:
- 1320 lb / 600 kg
- Readability:
- 0.05 lb / 0.02 kg
- Repeatability:
- 0.05 lb / 0.02 kg
- Linearity:
- 0.1 lb / 0.04 kg
- Construction:
- Die-cast aluminum base, stainless steel indicator
- Calibration:
- External
- Overall Dimensions (W x D x H):
- 23.6" x 36.8" x 34.6" / 400 x 625 x 855 mm
- Pan Size:
- 23.6" x 31.5" / 600 x 800 mm
- Weight:
- 77.1 lb / 35 kg
- Operating Temperature:
- 14° to 104°F / -10° to 40°C
- Approvals:
- NA
- Interface:
- RS-232
- Power Supply:
- 12VDC 800mA adapter / Internal rechargeable battery
- Battery Life:
- 90 hours
- Electrical Safety:
- CE, cUL
- Weighing Units:
- g, kg, lb, lb:oz, N
- Brand:
- Adam Equipment
- Model:
- AGF 1320a
