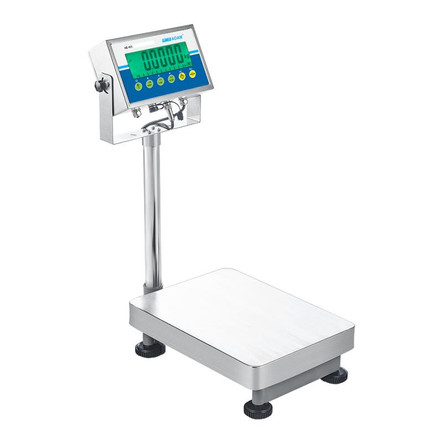

The versatile Adam Equipment AGB Bench Scale series is ideal for a wide range of manufacturing, processing, and logistics applications. AGB bench scales accommodate multiple weighing modes including parts counting, checkweighing, weighing, dynamic weighing and percentage weighing. They feature a stainless steel indicator with large LCD display, a die-cast aluminum base, and a large stainless steel pan. Each scale includes an AC adapter and internal rechargeable battery with a 90 hour operating charge.
Features
- Stainless steel pan and indicator
- Color coded keys for easy cognitive recognition
- Auto power off feature
- Checkweighing with audible alarm
- LED lights for checkweighing that show above, below, or acceptable weight
- Preset samples sizes for setting up parts counting
- Capacity tracker visible on display
- Programmable digital filtering to help keep the displayed weight stable
- Zero tracking to ensure scale returns to zero
- Bright LCD backlight easily view-able in any light
- Backlight can be set to always on, always off, or on only when weighing
- RS-232 connection for printers and PCs
Applications
- Weighing
- Parts counting
- Percentage weighing
- Checkweighing
- Dynamic weighing
- Hold and peak hold weighing
- Net and gross weighing
Documentation
- Capacity:
- 65 lb / 30 kg
- Readability:
- 0.002 lb / 0.001 kg
- Repeatability:
- 0.004 lb / 0.002 kg
- Linearity:
- 0.004 lb / 0.002 kg
- Construction:
- Die-cast aluminum base, stainless steel indicator
- Calibration:
- External
- Overall Dimensions (W x D x H):
- 11.8" x 20.5" x 25.8" / 300 x 520 x 610 mm
- Pan Size:
- 11.8" x 15.7" / 300 x 400 mm
- Weight:
- 30.9 lb / 14 kg
- Operating Temperature:
- 14° to 104°F / -10° to 40°C
- Approvals:
- NA
- Interface:
- RS-232
- Power Supply:
- 12VDC 800mA adapter / Internal rechargeable battery
- Battery Life:
- 90 hours
- Electrical Safety:
- CE, cUL
- Weighing Units:
- g, kg, lb, lb:oz, N
- Brand:
- Adam Equipment
- Model:
- AGB 35a
