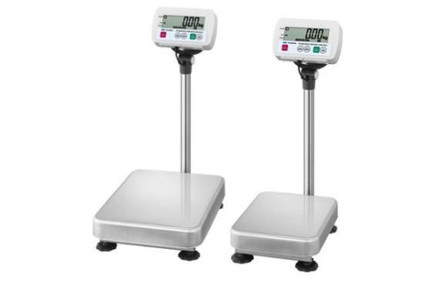

A&D Weighing SC series features an IP68 rating which makes it ideal for weighing in washdown areas. This series is capable of performing general weighing, checkweighing, and counting. The SC is great for high speed checkweighing due to its one second stabilization time. It also only operates on 6 D batteries on which it has an estimated operation time of around 4500 hours. The SC also features a fully stainless steel base, platform, and column along with a corrosion resistant epoxy coated load cell.
Features
- IP68 rated dust and waterproof protection
- High-speed weighing in one second to increase your weighing efficiency
- Large, liquid crystal display (LCD) shows all important information at a glance even in dimly lit areas
- Large 1.54 inch character size
- Easily changeable units between kg, lbs, oz, and pcs
- Long battery life of 4500+ hours with 6 D batteries (only operated by batteries)
- Robust stainless steel platform and frame
- Epoxy-coated load cell prevent corrosion and are reliable in the harshest of environments
- Column mounted display
- Annunciators for Stable, Net, Zero, Units, and comparator indications
- Adjustable leveling feet
- Integrated level bubble ensures proper setup
- Tilting display head with digital keypad
- Preset tare
- Multiple connectivity capabilities via Quick USB or RS-232C as options
Applications
- Weighing
- Check-weighing
- Counting
Documentation
SC Series Manual SC Series Literature SC Series NTEP Certificate
2 year manufacturer's warranty
- Capacity:
- 130 lb
- Readability:
- 0.02 lb
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- 11-048
- Measurement Canada Approval:
- AM-5827
- Maximum Counts:
- 60,000 pcs
- Pan Size:
- 11.8" x 15"
- Overall Dimensions:
- 11.8" x 21.4" x 28.2"
- Weighing Units:
- g, kg, lb, oz, and lb-oz
- IP Rating:
- IP68
- Construction:
- Stainless steel
- Calibration:
- External, with user-selectable calibration weight
- Operating Temp:
- -10°C to 40°C / 14°F to 104°F, 85%RH or lower (No condensation)
- Communication:
- optional RS232 or USB Relay
- Display Type:
- 7 Segment LCD with 39 mm height
- Display Update:
- 10 times per second
- Weight of scale:
- 27 lbs
- Power:
- 6 D Batteries
- Brand:
- A&D Weighing
- Model:
- SC-60KAM
