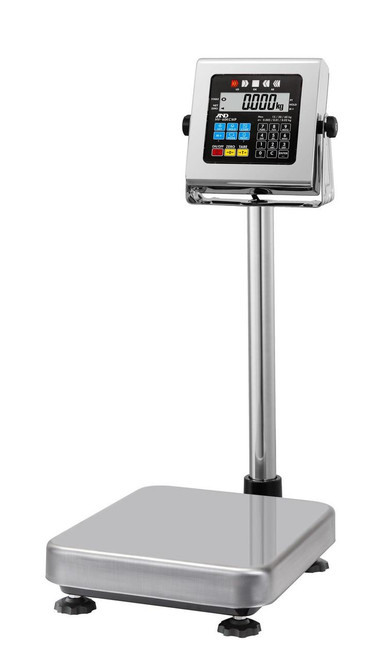

The A&D HV-C/CP series features a rugged stainless steel construction as well as an IP65 rating, making it ideal for standard industrial applications. Fast stabilization times, down to 1 second, and a built-in comparator increase weighing productivity, while a large, bright LCD screen clearly displays data, even in dimly lit areas. Remote operation is possible thanks to the ability to run off of four D batteries. A 10-digit alphanumeric simplifies the user's experience of setting comparator limits and programming.
Features
- IP65 rated construction
- Large LCD display with backlight
- Stainless steel body and weighing pan
- USB and RS232 communication ports
- Four leveling feet
- Comparator with tri-color LED lights
- Auto power off saves battery when not in use
- ABS indicator
- GLP/GMP/ISO compliant
Applications
- Weighing
- Counting
- Checkweighing
- Accumulation
Documentation
A&D Weighing HV-C/CP Series Data Sheet A&D Weighing HV-KC NTEP Certificate
2 year manufacturer's limited warranty
- Capacity:
- 500 lb
- First Capacity Range:
- 150 lb
- Second Capacity Range:
- 300 lb
- Third Capacity Range:
- 500 lb
- Readability:
- 0.05 lb
- First Readability:
- 0.05 lb
- Second Readability:
- 0.1 lb
- Third Readability:
- 0.2 lb
- Repeatability:
- 0.05/0.1/0.2 lb
- Linearity:
- ±0.05/0.1/0.2 lb
- NTEP:
- Yes
- Class:
- III
- NTEP CC:
- 17-099A2
- Weighing Pan Dimensions:
- 390 x 530 mm
- IP Rating:
- IP65
- Sensitivity Drift:
- ±20ppm/°C (5° to 35°C)
- Display Type:
- LCD
- Overall Dimensions:
- 390 x 712 x 773 mm
- Power:
- AC adapter
- Operating Temperature:
- -10° to 40°C, Less than 85% R.H.
- Brand:
- A&D Weighing
- Model:
- HV-200KC
