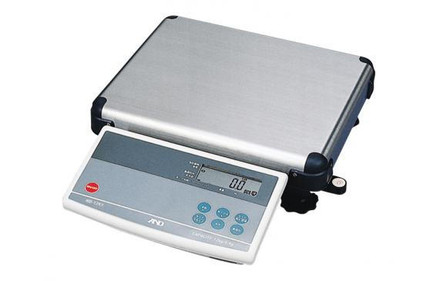

The A&D HD-KA series is capable of performing applications such as weighing, counting, and checkweighing. The single display and minimal buttons allow for simple yet effective operation. The HD series features the A&D Weighing ACAI which is Automatic Count Accuracy Improvement. ACAI combines the two most critical performance requirements of a counting scale: count accuracy and operation efficiency. Initial Average Piece Weight can be determined through an operator’s choice of fixed, random, keyboard entry, or memory recall.
Features
- 120,000 internal resolution
- A&D Weighing exclusive Automatic Count Accuracy Improvement (ACAI)
- LCD screen with up to 6 Digits 0.67 inches tall
- ACAI ensures fast, high count accuracy with minimal hand sample count
- Comparator function with hi/ok/lo display makes checkweighing easy
- AC adapter included; Optional rechargeable battery (AD-1681)
- Scale can also be operated with 6 C batteries, not included
Applications
- Counting
- Weighing
- Checkweighing
- Accumulation
Documentation
- Capacity:
- 30 lb
- Display Resolution:
- 0.005 lb
- Linearity:
- ±0.5g
- Minimum Sample Unit Weight:
- 0.1 g
- Internal Resolution:
- 120,000
- Sample Size:
- 5, 10, 25, 50, 100 pcs. or user selectable
- Platform Size:
- 11.81" x 14.96" / 300 x 380 mm
- Calibration:
- External
- Sensitivity Drift:
- 20ppm/°C (5°C - 35°C / 41°F - 95°F)
- Display Type:
- LCD, 6 Digits, 17mm / 0.67in (Height)
- Overall Dimensions (L x W x H):
- 16.18" x 18.50" x 4.72" / 411 x 470 x 120 mm
- Power:
- AC Adapter, 6 x C batteries or optional rechargeable NiCd Battery Pack (AD-1681)
- Operating Temperature:
- -10°C to 40°C (14°F to 104°F), less than 85% RH (No-condensing)
- Brand:
- A&D Weighing
- Model:
- HD-12KA
