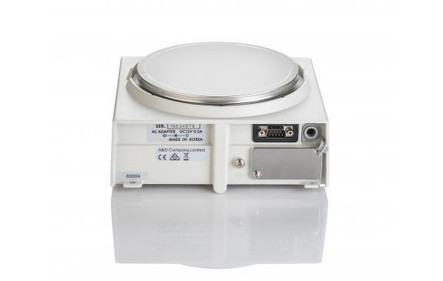

A&D Weighing FZ-iWP series balances feature Compact Super Hybrid Sensor (C-SHS) technology which provides superior accuracy and fast measurements, all within a compact design. FZ-iWP balances include an internal calibration feature that is performed with a simple push of a button. They are IP65 rated for protection against dust and water making them idea for use in harsh environments. These are a good choice for laboratories demanding accuracy, versatility and user-friendly operation. FZ-iWP models are GLP/GMP compliant, support multiple weighing functions and feature a highly-visible VFD display.
Features
- IP65 rated for water and dust
- Stainless steel weighing pan
- Adjustable leveling feet
- Integrated level bubble
- Overload protection
- Vacuum fluorescent display
- Standard RS-232 Interface with optional USB
- Security ring to prevent theft
- Easy to install optional battery power
- Under hook weighing
- Hold function to freeze the current weight displayed
- Counting function with automatic counting accuracy improvement
- Internal calibration with the push of a button
- Conforms to GLP, GMP, GCP, ISO
- SCF - Statistical Calculation Function
- C-SHS (Super Hybrid Sensor) provides reliable accuracy and quick results
- Auto Power-Off
- Multiple weighing units
- Highest speed response of stable weight is 1 second or less
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Checkweighing
- Dynamic Weighing
Documentation
5 year manufacturer's warranty
- Capacity:
- 220 g
- Readability:
- 0.001 g
- Repeatability:
- 0.001 g
- Linearity:
- 0.002 g
- Pan Size:
- 5.1" / 130 mm diameter
- Weighing Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, %, MLT
- Calibration:
- Internal calibration
- Span Drift:
- 2 ppm/°C
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Sample Quantities:
- 5, 10, 25, 50 or 100
- Minimum Unit Weight for Counting:
- 0.001 g
- Communication:
- RS-232
- Display Type:
- Vacuum Fluorescent Display
- Display Update:
- 5 / 10 / or 20 times per second
- Stabilization Time:
- Programmable, Can be as fast as 1 second
- Overall Dimensions (W x D x H):
- 7.6" x 10.3" x 3.3" / 193 mm x 262.5 mm x 84.5 mm
- Weight of scale:
- 5.5 lb / 2.5 kg
- Power:
- AC adapter, optional battery
- Washdown Rating:
- IP65
- Brand:
- A&D Weighing
- Model:
- FZ-200iWP
