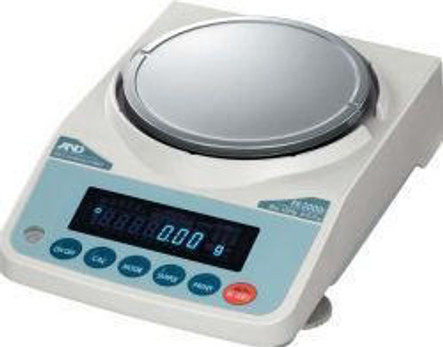

A&D Weighing FXiN series balances offer precise weighing and are backed with a 5 year warranty! The FXiN series comes with A&D patented Compact SHS (super hybrid sensor) which allows the balance to be compact, fast, and accurate. It features a stainless steel pan, standard RS-232 interface, overload protection, a large vacuum fluorescent display, and underhook weighing. The FXiN can be utilized in many different industries due to its wide range of functions and selectable units.
The FX-3000iN is NTEP certified. It can be placed in service and used in legal for trade applications.
Features
- The new revised version of the FXiN series is e = d to conform to changes in Handbook 44
- Stainless steel weighing pan
- Adjustable leveling feet
- Integrated level bubble
- Overload protection
- Vacuum fluorescent display
- Standard RS-232 Interface with optional USB
- Security ring to prevent theft
- Easy to install optional battery power
- Under hook weighing
- Hold function to freeze the current weight displayed
- Counting function with automatic counting accuracy improvement
- External calibration with user selected mass
- Compact low profile design
- Conforms to GLP, GMP, GCP, ISO
- SCF - Statistical Calculation Function
- Auto Power-Off
- Multiple weighing units
- Select fast, middle, slow weighing to adjust to situation
- Highest speed response of stable weight is 1 second or less
- NTEP Class II
- CC 08-045A3
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Checkweighing
- Dynamic Weighing
Documentation
5 year manufacturer's warranty
- Capacity:
- 3200 g
- Readability:
- 0.01 g
- Certified Readability:
- 0.1 g
- NTEP:
- Yes
- Class:
- II
- Pan Size:
- 5.9" / 150 mm diameter
- Weighing Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, %, MLT
- Calibration:
- External calibration
- Span Drift:
- 2 ppm/°C
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Sample Quantities:
- 5, 10, 25, 50 or 100
- Communication:
- RS-232
- Display Type:
- Vacuum Fluorescent Display
- Display Update:
- 5 / 10 / or 20 times per second
- Stabilization Time:
- Programmable, Can be as fast as 1 second
- Overall Dimensions (W x D x H):
- 7.6" x 10.3" x 3.3" / 193 mm x 262.5 mm x 84.5 mm
- Weight of scale:
- 5.5 lb / 2.5 kg
- Power:
- AC adapter, optional battery
- NTEP CC#:
- 08-045A2
- NTEP Capacity x Readability:
- 3200 g x 0.1 g
- Brand:
- A&D Weighing
- Model:
- FX-3000iN
