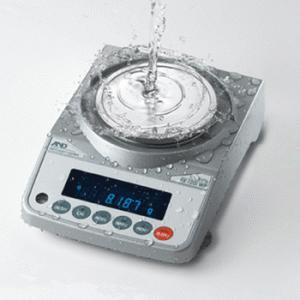

A&D Weighing FX-iWP precision balances provide reliable, consistent and precise weighing results. A&D Weighing's patented Compact SHS (Super Hybrid Sensor) ensures fast stabilization times and accurate measurements all within a compact footprint. FX-iWP precision balances feature an IP65 rating, which protects them from moisture and debris when used in harsh environments. With multiple weighing modes, weighing units, user-selectable environmental filters and fast stabilization times, A&D FX-iWP are designed to provide a robust weighing solution for a wide range of research and industrial applications.
Features
- IP65 protection rating ideal for harsh environments
- Overload protection
- Standard RS-232 communication with optional USB
- Hold function to freeze the current weight displayed
- Counting function with automatic counting accuracy improvement
- Compact low profile design
- GLP/GMP/GCP/ISO compliant
- SCF - Statistical Calculation Function
- User-selectable environmental filters
- Fast stabilization times of 1 second or less
- Optional rechargeable battery (AC power supply included)
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Checkweighing
- Dynamic Weighing
Documentation
5 year manufacturer's warranty
- Capacity:
- 1220 g
- Readability:
- 0.01 g
- Repeatability:
- 0.01 g
- Linearity:
- 0.02 g
- Pan Size:
- 5.9" / 150 mm diameter
- Weighing Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, GN, tl, tol, mes, pcs, %, MLT
- Calibration:
- External calibration
- Span Drift:
- 2 ppm/°C
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Sample Quantities:
- 5, 10, 25, 50 or 100
- Minimum Unit Weight for Counting:
- 0.01 g
- Communication:
- RS-232
- Display Type:
- Vacuum Fluorescent Display
- Display Update:
- 5 / 10 / or 20 times per second
- Stabilization Time:
- Programmable, Can be as fast as 1 second
- Overall Dimensions (W x D x H):
- 7.6" x 10.3" x 3.3" / 193 mm x 262.5 mm x 84.5 mm
- Weight of scale:
- 5.5 lb / 2.5 kg
- Power:
- AC adapter, optional battery
- Washdown Rating:
- IP65
- Brand:
- A&D Weighing
- Model:
- FX-1200iWP
