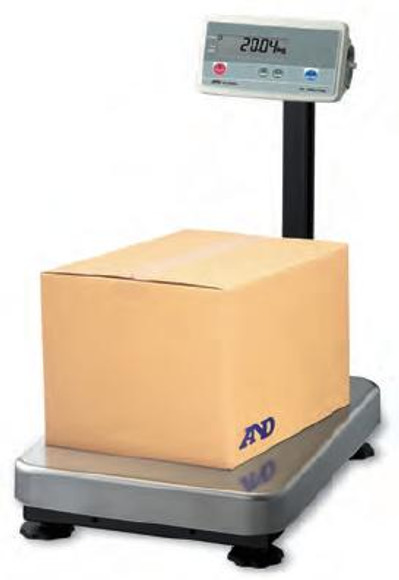

A&D Weighing FG-K Series scales are high quality well built bench scales suitable for many industrial weighing applications. A&D Weighing FG-K bench scales are user friendly and very versatile. They can be used for general weighing, parts counting, and check-weighing. The 5 button keypad allows for simple operation and the battery power option allows for portability. The auto-power off function saves battery life by automatically switching the scale off when it displays zero for approximately five minutes. The FG-60KAMN scale also features NTEP approval, a one second response time, a 15.4 x 20.9 in. large size stainless steel pan, and a column mount indicator. Upgrade options include a RS-232C port or a RS-232C port with a comparator relay output.
Features
- Stainless steel weighing pan
- Column mounted display
- Comparator Function (Hi, Ok, Low indicators)
- Annunciators for Stable, Net, Zero, Units, and comparator indications
- Adjustable leveling feet
- Integrated level bubble ensures proper setup
- AC or 4 C cell battery operation
- Low power alert
- Auto-off function
Applications
- Parts Counting
- Weighing
- Check-weighing
Documentation
- Capacity:
- 150 lb
- Readability:
- 0.05 lb
- NTEP:
- Yes
- Class:
- III
- NTEP Readability:
- 0.05 lb/0.02 kg/1 oz
- Weighing Pan Size:
- 15.4 x 20.9 in / 390 x 530 mm
- Weighing Units:
- lb, kg, oz
- Construction:
- Plastic indicator housing, steel base, stainless steel pan
- Calibration:
- External, with user-selectable calibration weight
- Repeatability:
- 0.01 kg
- Non-Linearity:
- +/- 0.02 kg
- Span Drift:
- 0.002% / °C (5‚°C 35‚°C) typ.
- Operating Temp:
- -10‚°C to 40‚°C / 14‚°F to 104‚°F, 85%RH or lower (No condensation)
- Communication:
- optional RS232C
- Display Type:
- 7 segment LCD
- Display Update:
- Approx. 10 times per second
- Max Count Display:
- 96,000 pcs
- Min. unit weight:
- 0.625 g
- No. of samples for sample count:
- 5, 10, 20, 50, 100 pcs
- Overall Dimensions:
- 300 (w)x 624 (d) x 781 (h) mm
- Weight of scale:
- 36.2 lb
- Power:
- AC adapter included, or 4 C batteries
- Battery Operation:
- Approx. 150 hrs
- Brand:
- A&D Weighing
- Model:
- FG-60KALN
