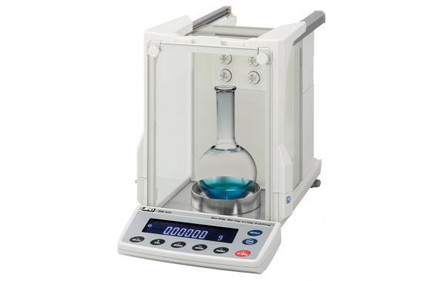

The A&D Weighing BM-22 Micro Balance is ideal for a laboratories requiring mass amounts of extremely accurate data. Internal memory can store up to 200 sets of weighing data and 50 sets of calibration data and the included AD-1688 can store up to 5000 data points. It features a built in fan-less internal ionizer to eliminate statically charged products, a large weighing chamber, and anti static glass to block out electrical interference. The balance can be calibrated at any time with the push of a button and the auto calibration feature causes the balance to calibrate itself whenever it senses a change in temperature. The BM micro balance series feature a wide range of accessories to facilitate additional and expanded functionality.
Features
- Built in clock and calendar
- Reverse liquid crystal display
- External Calibration and Internal Calibration
- Enhanced OES ordinal Electromagnetic Sensor for weighing 0.001 mg
- Auto Self Calibration if balances senses change in temperature
- Built in DC static eliminator can eliminate static electricity of product before weighing
- Built in sensors that monitor temperature, atmospheric pressure, and humidity
- Auto or manual stabilization from the effects of wind and vibration
- RS-232 and USB interface to connect to computers and printers
- Anti static glass windbreak
- Removable separation plate for weighing larger products
- Large weighing chamber
- Illuminated level bubble
- Memory store function stores weighing data and calibrations
- GLP, ISO, GMP, and GCP compliant reports
- Includes TB:248 adapter
- Includes AD-1688 data logger - stores up to 5000 data points
- Auto on and off function
- Dual Range 5.1 g x 0.001 mg, 22 g x 0.01 mg
Applications
- Weighing
- Parts counting
- Percentage weighing
- Density determination
- Specific Gravity
Documentation
- Capacity:
- 22 g
- First Range:
- 5.1 g
- Second Range:
- 22 g
- Readability:
- 0.001 mg / 0.01 mg
- Repeatability:
- 0.004 mg / 0.01 mg
- Linearity:
- 0.010 mg / 0.02 mg
- Sensitivity Drift (10°C-30°C):
- ±2ppm/°C (when automatic self calibration is not used)
- Calibration:
- Internal calibration, external calibration, automatic internal calibration
- Display Refresh Rate:
- 5 times per second, 10 times per second
- Weighing Units:
- mg, g, ozt, oz, dwt, ct, mom, GN, tael, tola, PC, %, Specific gravity
- Stabilization Time:
- approximately 8 to 10 seconds
- Display:
- Revese liquid crystal display
- Pan Size:
- 0.98 " / 25 mm (50 mm, 95 mm for weighing filters)
- Communication:
- RS-232C, USB, External key plug for optional foot switch (SW:128)
- Construction:
- ABS housing; anti static glass draft shield
- Operating Temperature:
- 41°F to 104°F / 5°C to 40°C, 85%RH or less
- Power:
- TB:248 adapter, 115 / 230 VAC
- Overall Dimensions (W x D x H):
- 10.2" x 18.3" x 12.8" / 259 mm x 466 mm x 326 mm
- Ionizer electrode pin life:
- 10,000 hours
- AD-1688 data capabilities:
- 5000 data points (weight, date and time)
- BM Internal Memory:
- 200 sets weighing data / 100 sets with date & time / 50 sets of calibration data
- Net Weight:
- 22 lbs / 10 kg
- Brand:
- A&D Weighing
- Model:
- BM-22
