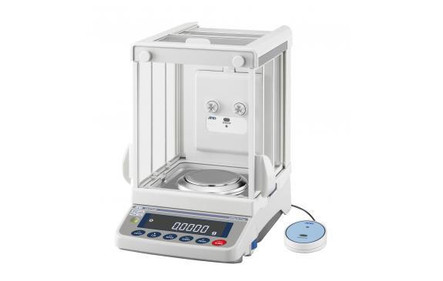

The A&D Apollo series balances are an excellent solution for high level analytical weighing. They feature the new ISD shock detection that can display and record shock impacts to determine when and how strong the shock impact was. The Apollo is designed with the A&D SHS (Super Hybrid Sensor) that allows for high levels of repeatability and extremely quick readings. It also includes the new ECL which is an internal self diagnostic check the can perform a repeatability test without the assistance of external weights. This test takes under a minute and a half to perform and provides results such as if the balance passes or fails, standard deviation, minimum sample weight, and alerts to ensure the user is within USP41 compliance. The GX-A version of the Apollo features an internal calibration for one touch calibrations. Even with all these advance and helpful features the Apollo is an overall simple to use balance that requires minimum training for operation.
Features
- Built in Fanless Ionizer and IR sensor
- Internal Calibration
- ISD impact shock detection and recorder
- SHS (Super Hybrid Sensor) provides superior accuracy and quick results
- ECL Electronically Controlled Load which performs an internal repeatability test that take 1 and a half minutes to complete
- FR-Cal – calculates, displays/outputs the mass or volume flow rate by entering density
- FR-Compare – comparator that provides feedback if the flow rate is within limits
- Stainless steel weighing pan
- Adjustable leveling feet and integrated level bubble
- Draft shield
- Adapter included
- Bright blue vacuum fluorescent display
- Standard RS-232 and USB Interface
- USB cable included
- Under hook weighing
- Automatic response adjustment to prevent effects of wind and vibration
- Hold function to freeze the current weight displayed
- Data memory function can store weighing data, calibration data or unit mass in the counting mode
- External Calibration
- Password protection to prevent unwanted changes in the programming
- Conforms to GLP, GMP, GCP, ISO
- Windows compatible data collection software
- Multiple weighing units
- Highest speed response of stable weight is 1.5 second or less
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Comparator
- Dynamic / Animal Weighing
- Density Determination
- Statistical Calculation
- Underhook Weighing
Documentation
Apollo GX Datasheet Apollo Operation Manual Apollo Literature Apollo Communication Manual
- Capacity:
- 320 g
- Readability:
- 0.0001 g
- Repeatability:
- 0.0002 g
- Linearity:
- 0.0003 g
- Pan Size:
- 90 mm Diameter
- Weighing Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, grain, pcs, %, SG, custom unit
- Calibration:
- Internal Calibration
- Span Drift:
- ±2 ppm/°C (10 to 30°C/50 to 86°F, when automatic self calibration is OFF)
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Sample Quantities:
- 5, 10, 25, 50 or 100
- Minimum Unit Weight for Counting:
- 0.0001 g
- Communication:
- RS-232, USB
- Display Type:
- LCD
- Stabilization Time:
- 2 seconds
- Overall Dimensions:
- 259 (W) x 358 (D) x 332 (H) mm
- Weight of scale:
- 15.5 lb / 7 kg
- Power:
- AC adapter
- Brand:
- A&D Weighing
- Model:
- GX-324AE
