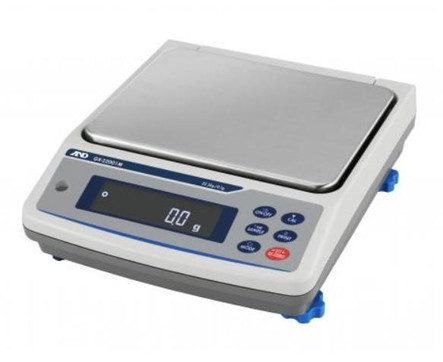

A&D Weighing Apollo GX-M and GF-M models feature an IP65 rating that prevents ingress from dust and can withstand water projected lightly from any direction. GX models feature internal calibration through the Auto Self Cal (ASC) which makes automatic adjustments if ambient temperature changes are sensed. Internal calibration can also be enacted at any time through a simple button press. The A&D Apollo balances both feature the integrated impact shock detection (ISD) which shows the level of shock load on the screen, provides audible warnings about the level of the shock load, and logs up to 50 individual instances of shock loading occurring with a timestamp. Apollo series precision balances are simplified with easily recognizable buttons, a highly visible display, and a variety of weighing applications, which makes it an excellent solution for a wide range of industries.
Features
- Auto Self Cal (ASC) makes automatic adjustments if ambient temperature changes
- Smart-SHS weighing technology
- Integrated impact shock detection (ISD)
- Two leaf springs within the balance help mitigate impact shocks
- GLP/GMP/GCP compliant with time/date signatures and ID numbers
- Four leveling feet and bubble level
- Backlit LCD display with 6 keys
- Stainless steel pan and dust-plate
- Passwords for 11 users and 1 administrator
- Flow rate display
- IP65 rating protects against dust and water ingress
Applications
- Weighing
- Counting
- Percent weighing
- Animal/Dynamic weighing
- Density Determination
- Statistics
- Underhook weighing
Documentation
A&D Weighing GX-M/GF-N Data Sheet A&D Weighing GX-M/GF-M Manual
- Capacity:
- 32,200 g
- Readability:
- 0.1 g
- Repeatability:
- 0.1 g
- Linearity:
- ±0.2 g
- Calibration:
- Automatic Internal
- Allowable Accuracy Of Internal Calibration:
- ± 1.5 g
- Stabilization Time:
- ~ 1.5 sec
- IP Rating:
- IP65
- Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, gr, pcs, %, SG, user-programmable unit
- Pan Size:
- 10.62" x 8.26"
- Construction:
- Die Cast Aluminum Housing. Stainless Steel Pan
- Display Type:
- Backlit LCD
- Units of Measure:
- Grams, Ounces, Pounds, Pound-ounce, Troy ounce, Carat, Pennyweight, Grain
- Communication:
- RS-232C and USB
- Dimensions:
- 11.81" x 13.97" x 4.37"
- Weight:
- GX-M: Approx. 9.3 kg / GF-M: Approx. 8.3 kg
- Power:
- TB648
- Brand:
- A&D Weighing
- Model:
- GX-32001M
