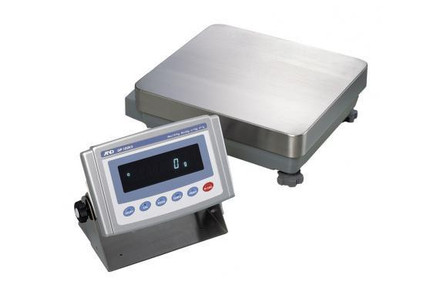

A&D Weighing Apollo GX-L Series precision balances feature a Double Leveraged Super Hybrid Sensor, which results in fast and accurate measurements. The GX-L series is packed with cutting-edge technology that enables it to perform impressively in a range of applications and industries. It features an IP65 rating, automatic internal calibration, tilt detection software, and impact shock detection. The Apollo GX-L series is even optimized for data collection through the free WinCT-UFC software. Whether it's in a climate-controlled lab or the production floor, the GX-L series is designed to perform!
Features
- Double Leveraged SHS (super hybrid sensor) allows the balance to be compact, fast, and accurate
- ISD (impact shock detection) software tracks overloads and shock loads, and can provide an audible alarm if severe shock load is detected
- Comes standard with RS232 and bi-directional USB (cable included)
- Data collection and management with WinCt-UFC software (free to download)
- Tilt detection warns operator is balance is out of level
- Detached display with 10 ft cable
- Conforms to GLP, GMP, and ISO
- Capacity indicator to help prevent overloads
- Date and Time function
- Automatic response adjustment to prevent effects of wind and vibration
- Hold function to freeze the current weight displayed
- Data memory function can store either weighing data, calibration data or unit mass in the counting mode
- Auto Power-Off
- Auto zero function after data input
- Select fast, middle, slow weighing to adjust to your situation
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Hi/Low Comparator
- Dynamic / Animal Weighing
- Density Determination
- Statistical Calculation
- Underhook Weighing (only with accessory GP-21/22)
Documentation
A&D Weighing GX-L Data Sheet A&D Weighing GX-L Brochure A&D Weighing GX-L Comparison Sheet
5 year manufacturer's limited warranty
- Capacity:
- 32 kg
- Readability:
- 0.1 g
- Repeatability:
- 0.1 g
- Linearity:
- ± 0.2 g
- Stabilization Time:
- Fastest rate of 1.5 seconds
- Weighing Units:
- kg, kg-g, oz, lb, lb-oz, ozt, dwt, ct, mm, GN, pcs, %
- Calibration:
- External Calibration and Internal Calibration
- Accuracy after Internal Calibration:
- ± 1 g
- External Calibration Mass:
- 5 kg, 10 kg, 20 kg, 30 kg
- Span Drift:
- ± 3 ppm/°C
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Minimum Unit Weight for Counting:
- 0.1 g
- Available Sample Sizes for Counting:
- 5, 10, 25, 50, 100, or an arbitrary number of pieces
- Sample Refresh Rate:
- 5 or 10 times per second
- Communication:
- RS-232 and USB mini B
- Display Type:
- Large reverse backlit LCD display
- Display Update:
- 5 or 10 times per second
- Pan Dimensions:
- 15.2" x 13.5"
- Weight of scale:
- approximately 37.5 lbs
- Power:
- AC adapter
- Approvals:
- GLP, ISO, GMP compliant
- IP Rating:
- IP65
- Brand:
- A&D Weighing
- Model:
- GX-32001LS
