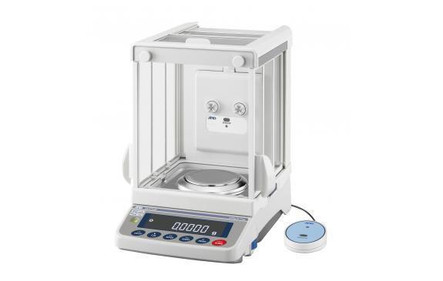

A&D Weighing Apollo GX-AN analytical balances offer a high level of accuracy, durable construction, and a 5-year manufacturer's warranty. Featuring Smart-SHS technology for quick results, automatic internal calibration, and impact shock detection, Apollo GX-AN balances advanced technology enhance productivity. Secure data management supports up to 11 users and 1 administrator with password protection. A large backlit LCD display and six intuitive keys make operation simple, while RS-232C and USB ports allow connectivity to PCs, printers and other devices for enhanced data management. A&D Weighing GX-AN models are NTEP approved for use in legal for trade applications.
Features
- NTEP approved
- Built in Fanless Ionizer and IR sensor
- Internal Calibration
- ISD impact shock detection and recorder
- SHS (Super Hybrid Sensor) provides superior accuracy and quick results
- ECL Electronically Controlled Load which performs an internal repeatability test that take 1 and a half minutes to complete
- FR-Cal – calculates, displays/outputs the mass or volume flow rate by entering density
- FR-Compare – comparator that provides feedback if the flow rate is within limits
- Adjustable leveling feet and integrated level bubble
- Adapter included
- Standard RS-232 and USB Interface
- USB cable included
- Automatic response adjustment to prevent effects of wind and vibration
- Hold function to freeze the current weight displayed
- Data memory function can store weighing data, calibration data or unit mass in the counting mode
- Password protection to prevent unwanted changes in the programming
- Conforms to GLP, GMP, GCP, ISO
- Windows compatible data collection software
- Highest speed response of stable weight is 1.5 second or less
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Comparator
- Dynamic / Animal Weighing
- Density Determination
- Statistical Calculation
- Underhook Weighing
Documentation
Apollo GX Datasheet Apollo Operation Manual Apollo Literature Apollo Communication Manual
- Capacity:
- 120 g
- Readability:
- 0.1 mg
- Repeatability:
- 0.1 mg
- Linearity:
- 0.2 mg
- NTEP:
- Yes
- NTEP CC:
- 21-045
- Class:
- I
- Verification Interval e:
- 0.001 g
- Calibration:
- Automatic Internal
- Stabilization Time:
- 1.5 second
- Pan Size:
- 90 mm diameter
- Overall Dimensions:
- 259 (W) x 358 (D) x 332 (H) mm / 10.2" x 14.1" x 13.1
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Display Type:
- Backlit LCD
- Weighing Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, grain, pcs, %, SG, custom unit
- Communication:
- RS-232, USB
- Weight of scale:
- 15.5 lb / 7 kg
- Power:
- AC adapter
- Brand:
- A&D Weighing
- Model:
- GX-124AEN
