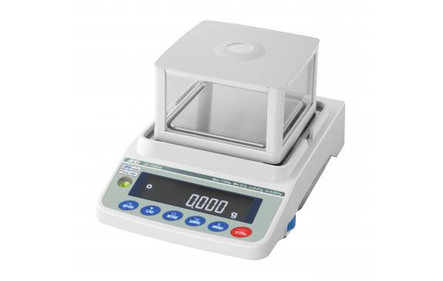

The A&D Weighing GF-303A precision balance utilizes the patented A&D Super Hybrid Sensor to deliver highly precise measurements within just one second or less! GF series precision balances feature a stainless steel pan, RS-232 interface, and underhook weighing. Their compact footprint requires minimal bench space for operation. The GF-303A comes with a removable draft shield and features an automatic response adjustment to help prevent disruptions from wind and vibrations.
Features
- Stainless steel weighing pan
- Adjustable leveling feet
- Integrated level bubble
- Comes with Adapter
- Basic operator card included
- Draft shield
- Capacity indicator to help prevent overloads
- Bright blue vacuum fluorescent display
- Standard RS-232 Interface
- USB compatible
- Date and Time function
- Under hook weighing
- Automatic response adjustment to prevent effects of wind and vibration
- Hold function to freeze the current weight displayed
- Data memory function can store weighing data, calibration data or unit mass in the counting mode
- Counting function with automatic counting accuracy improvement
- External Calibration
- Conforms to GLP, GMP, GCP, ISO
- Windows compatible data collection software
- SHS (Super Hybrid Sensor) provides superior accuracy and quick results
- Auto Power-Off
- Multiple weighing units
- Highest speed response of stable weight is 1 second or less
- FR-Cal function calculates, displays, and outputs mass flow rate or volume flow rate
Applications
- General Weighing
- Parts Counting
- Percentage Weighing
- Comparator
- Dynamic / Animal Weighing
- Density Determination
- Statistical Calculation
- Underhook Weighing
Documentation
5 year manufacturer's limited warranty
- Capacity:
- 320 g
- Readability:
- 0.001 g
- Repeatability:
- 0.001 g
- Linearity:
- 0.002 g
- Pan Size:
- 5" x 5" / 128 mm x 128 mm
- Weighing Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, grain, pcs, %, SG, custom unit
- Calibration:
- External Calibration
- Span Drift:
- 2 ppm/°C
- Operating Temp:
- 5°C to 40°C / 41°F to 104°F, 85%RH or lower (No condensation)
- Sample Quantities:
- 5, 10, 25, 50 or 100
- Minimum Unit Weight for Counting:
- 0.001 g
- Communication:
- RS-232, USB
- Display Type:
- Reverse Backlit LCD
- Display Update:
- 5 , 10, or 20 times per second
- Stabilization Time:
- 1 second
- Overall Dimensions (W x D x H):
- 8.3" x 12.5" x 3.7" / 212 mm x 317 mm x 93 mm
- Weight of scale:
- 11 lb / 5 kg
- Power:
- AC adapter
- Brand:
- A&D Weighing
- Model:
- GF-303A
