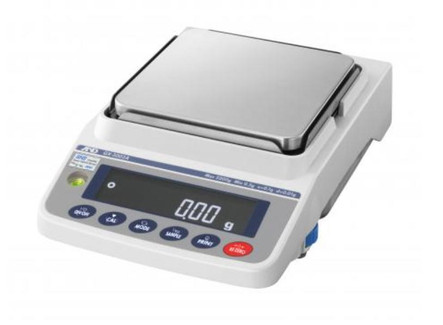

A&D Weighing Apollo GF-AWP washdown precision balances feature an industry-first IP65 rating. Modern technology including the Smart-SHS (super hybrid weigh sensor) increases productivity with faster stabilization times and minimal maintenance. Impact shock detection visually and audibly indicates shock magnitudes and also auto-logs related data. GX-AWP precision balances offer GMP/GLP/GCP compliance with data management, calibration documentation, and password protection for users and administrators. The high-contrast white-on-black backlit LCD display and simplified keypad allows easy access of data and user-friendly operation. Four leveling feet with thumbwheels and a large easy-read level bubble make adjustments of the weighing platform simple and precise.
Features
- IP65 rated balance for washdown and debris protection
- GLP/GMP/GCP compliant
- Four leveling feet and bubble level
- Backlit LCD display with 6 keys
- Stainless steel pan and dust-plate
- Smart-SHS weighing technology
- Self-diagnostic electronically controlled load
- Impact shock detection
- Passwords for 11 users and 1 administrator
- Flow rate display
Applications
- Weighing
- Counting
- Percent weighing
- Animal/Dynamic weighing
- Density Determination
- Statistics
- Underhook weighing
Documentation
A&D Weighing GX-AWP/GF-AWP Data Sheet A&D Weighing GX-AWP/GF-AWP Manual A&D Weighing GX-AWP/GF-AWP Communication Manual
- Capacity:
- 2200 g
- Readability:
- 0.01 g
- Repeatability:
- 0.01 g
- Linearity:
- ±0.02 g
- Calibration:
- External Calibration
- Stabilization Time:
- ~ 1 sec
- IP Rating:
- IP65
- Units:
- g, oz, lb, lb-oz, ozt, ct, mom, dwt, gr, pcs, %, SG, user-programmable unit
- Pan Size:
- 165 mm x 165 mm / 6.5 in x 6.5 in
- Construction:
- Die Cast Aluminum Housing. Stainless Steel Pan
- Display Type:
- Backlit LCD
- Units of Measure:
- Grams, Ounces, Pounds, Pound-ounce, Troy ounce, Carat, Pennyweight, Grain
- Communication:
- RS-232C, USB
- Dimensions:
- 212 × 317 × 93 mm
- Weight:
- 5 kg / 11 lb
- Power:
- TB247
- Brand:
- A&D Weighing
- Model:
- GF-2002AWP
